Rebuilding ESP32-fluid-simulation: the pressure projection step of the sim task (Part 5)
It’s been a while since my last post, but let’s bring this series to its finale. Out of all the parts of the fluid sim, the last piece I have not explained is the pressure projection. The code alone doesn’t reveal the great deal of context that goes into its design. Here’s a hint: it’s actually a linear algebra routine involving a “sparse matrix”. Though it’s possible these days to implement the pressure projection without needing to know all that context, thanks to articles like Jamie Wong’s post, the GPU Gems chapter, and Stam’s “Real-Time Fluid Dynamics for Games”, achieving a believable fluid simulation on an ESP32 would have been impossible. I’ve personally tried it before, and after knowing? All I needed was to switch in a technically superior method. There was a reason why I dedicated airtime to this—let me explain.
In part 3, we covered the Navier-Stokes equations, and in part 4, we covered how parts of the equations were discretized differently. Well, to begin with I need to cover one last thing that involves continuous fields and not discrete arrays: the “Helmholtz-Hodge decomposition”.
It’s mentioned in the GPU Gems chapter, and for that Stam’s 1999 “Stable Fluids” paper is cited. In the end, I had found “Stable Fluids” to be the definitive place to start looking for context, and there I borrow much of my understanding. Now, it itself cites a section of the book A mathematical introduction to fluid mechanics by Chorin and Marsden. Building upon this section, I’ll get into what the “Helmholtz-Hodge decomposition” is. Though, I won’t get into why it is i.e. all of the book preceding that section. That’s outside the scope I want to take here, but that’s also outside what I can comfortably do—I’ll admit. With that said, what is it, and how do we apply it?
We can derive the pressure projection from the decomposition. To begin, the decomposition itself is this: given some vector field $\bold{w}$ that is defined over a bounded space, it can be taken as the following sum
\[\bold{w} = \bold{v} + \nabla p\]where $\nabla p$ is the gradient of a scalar field and $\bold v$ is a vector field that has zero divergence everywhere in the space and zero flow across its boundary. In other words, every vector field can be broken down into two components, one with all of its original divergence and one with zero divergence, and the former is necessarily the gradient of some scalar field. In part 3, I mentioned that a linear projection $\mathbb{P}$ is applied to the velocity field in order to make it valid, and remember that “valid” means that it satisfies the incompressibility constraint by having zero divergence. A definition for that linear projection can be built upon the Helmholtz-Hodge decomposition.
Let $\bold w$ be the uncorrected velocity field. Since we want its zero-divergence component, we need to isolate $\bold{v}$. That gives us this expression.
\[\bold{v} = \bold{w} - \nabla p\]However, before we can subtract $\nabla p$ from $\bold w$, we need to find what $p$ is in the first place! The Helmholtz-Hodge decomposition tells us that such a $p$ exists, but the problem is that it does not tell us how to find it. Therein lies the meat of the pressure projection. In this context, $p$ is not just some scalar field; $p$ stands for “pressure”.
Also in the Chorin and Marsden section, you’d find that the proof of the Helmholtz-Hodge decomposition builds upon the pressure being the solution to a particular “boundary value problem”, one that Stam noted to involve a case of “Poisson’s equation”. In a “boundary value problem”, we’re given a bounded space as a domain, the governing differential equations that a function on that space (i.e. a field) must satisfy, and the values that the function (and/or values of that function’s derivative) must take on the boundary i.e. the “boundary conditions”.
Regarding “Poisson’s equation”, I’m not qualified to opine about it or anything, so I’ll just say that it’s a partial differential equation where one scalar field is equal to the Laplacian of another scalar field. If there’s an intuitive meaning to it, that’s currently lost on me.
Anyway, the boundary value problem is this: given $\bold{w}$, $p$ should satisfy the following case of Poisson’s equation
\[\nabla^2 p = \nabla \cdot \bold{w}\]on the domain, whereas on the boundary its “directional derivative” is specified.

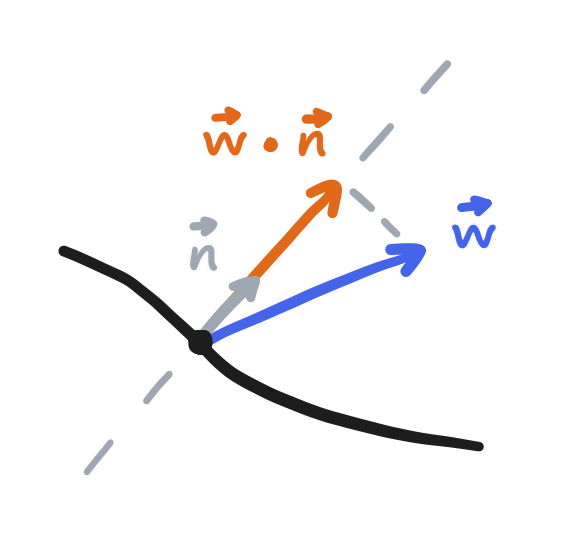

When I say “directional derivative”, I’d like you to recall that explanation of the partial derivative I did in Part 3, where I mentioned that $\frac{\partial p}{\partial x}$ and $\frac{\partial p}{\partial y}$ were just the slopes of two lines in the many that make up the plane tangent to the field. The “directional derivative” is the slope of a potentially different line, the one running in the direction that the derivative is being taken with respect to. (This definition also goes to show that the typical partials $\frac{\partial p}{\partial x}$ and $\frac{\partial p}{\partial y}$ are special cases of the directional derivative, being taken in the $+x$- and $+y$-directions.)

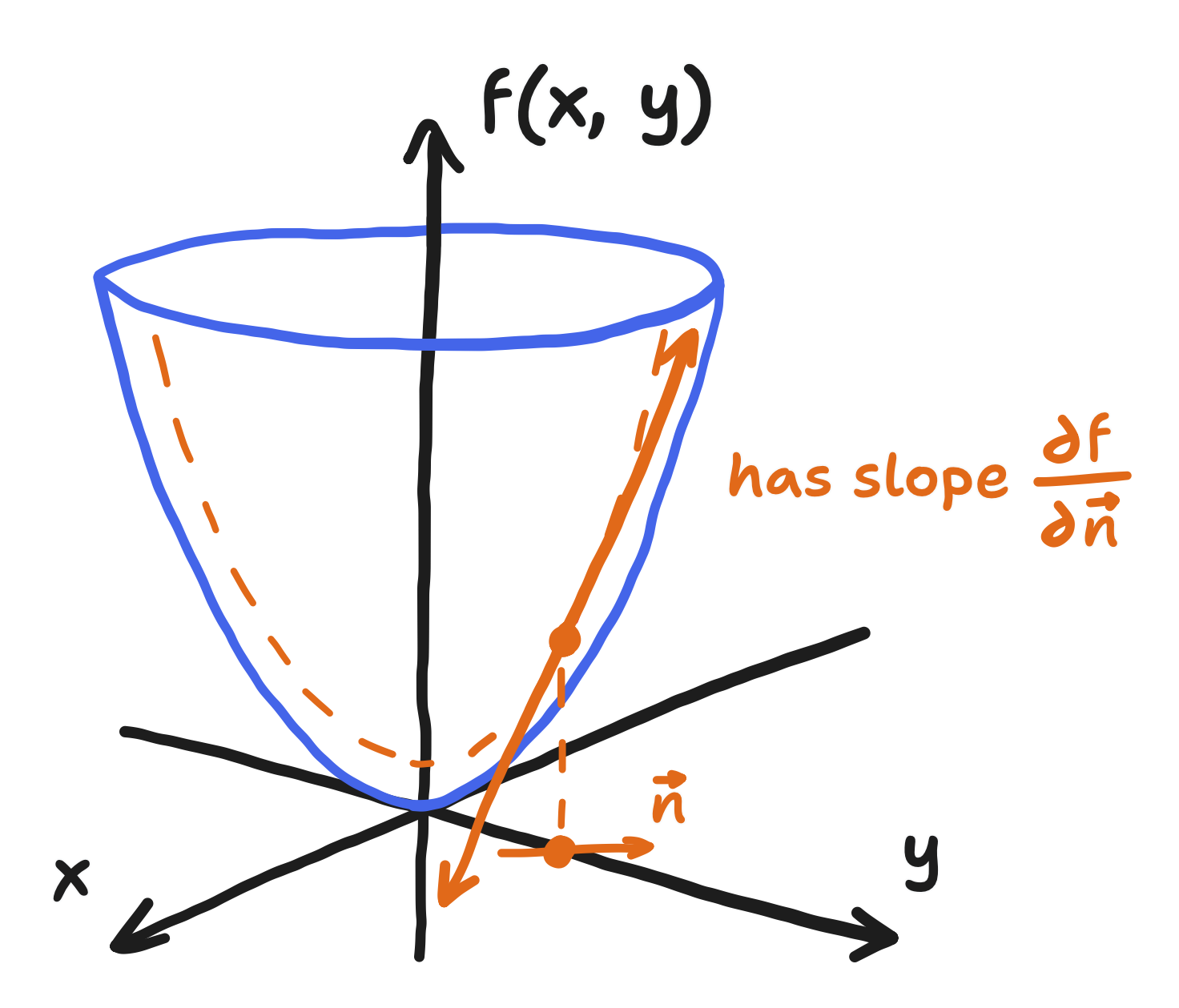

It is often denoted as $\frac{\partial f}{\partial \bold{v}}$, where $\bold{v}$ is a vector that points in the direction that the field $f$ is being taken with respect to. Furthermore, it is defined as the dot product between the gradient $\nabla f$ and $\tilde{\bold{v}}$, where $\tilde{\bold{v}}$ is the unit vector in that direction.
\[\frac{\partial f}{\partial \bold{v}} \equiv \tilde{\bold{v}} \cdot \nabla f\]In this case, the directional derivative with respect to the normal (the direction perpendicular to the boundary and pointing outwards) is equal to the component of $\bold{w}$ that is in that direction. A specification of the derivative, not the value, of $p$ like this is said to be a “Neumann” boundary condition. Formally, the boundary condition is written like this:
\[\frac{\partial p}{\partial \bold{n}} = \bold{w} \cdot \bold{n} \enspace \text{on} \enspace \partial D\]

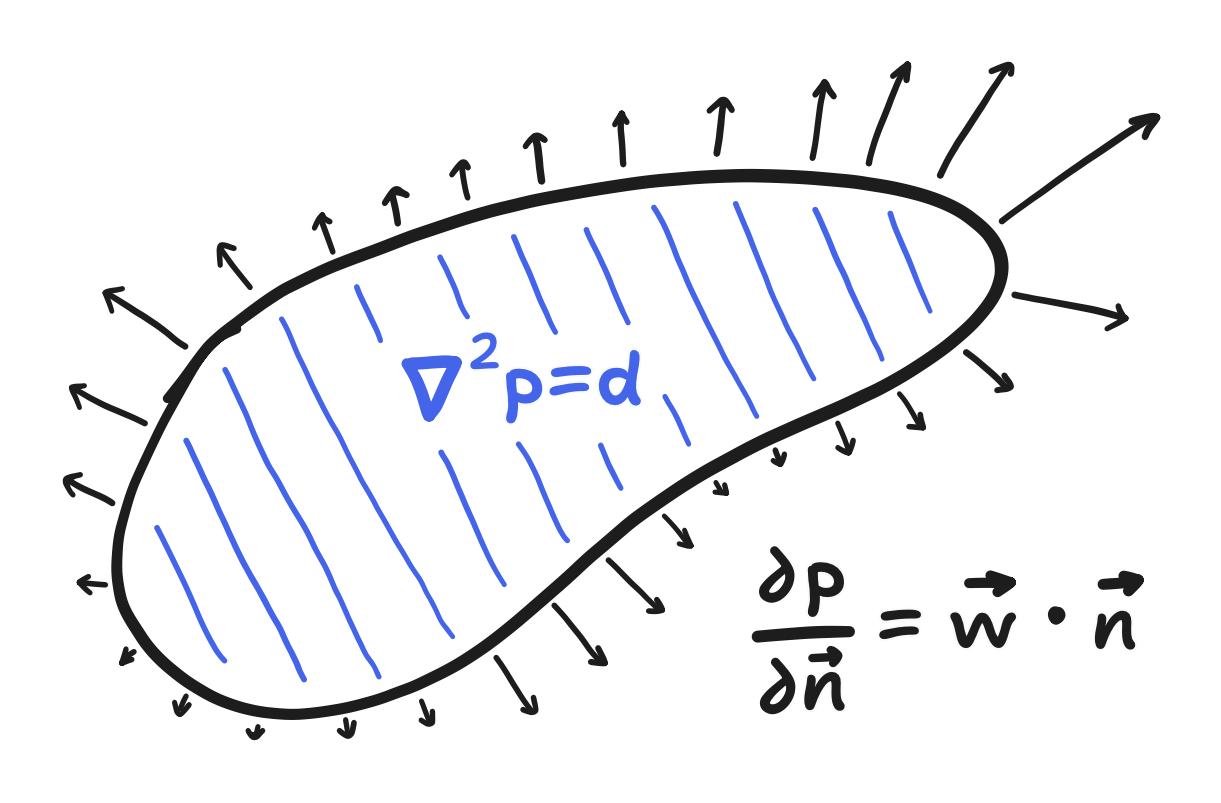

So, our boundary value problem involves a case of Poisson’s equation and Neumann boundary conditions, not to mention the domain, which should be representative of the screen, i.e. a rectangle. There are many ways to solve this, but we’ll start by again turning to discretization with a grid. This time, though, it’ll be an entire finite difference method.
Review: The finite difference discretization
I mentioned them in passing in Part 4, but you may or may not be familiar with the “finite difference” approximation of a derivative. A “finite difference” can be taken quite literally: it’s the “difference” (i.e. subtraction) between the values of a function at points separated by a “finite” (i.e. not infinitesimal) distance. It’s what happens when you don’t take the limit inside the definition of the derivative.
\[\frac{df}{dx} = \lim_{h \to \infty} \frac{f(x) - f(x-h)}{h} \approx \frac{f(x) - f(x-\Delta x)}{\Delta x}\]

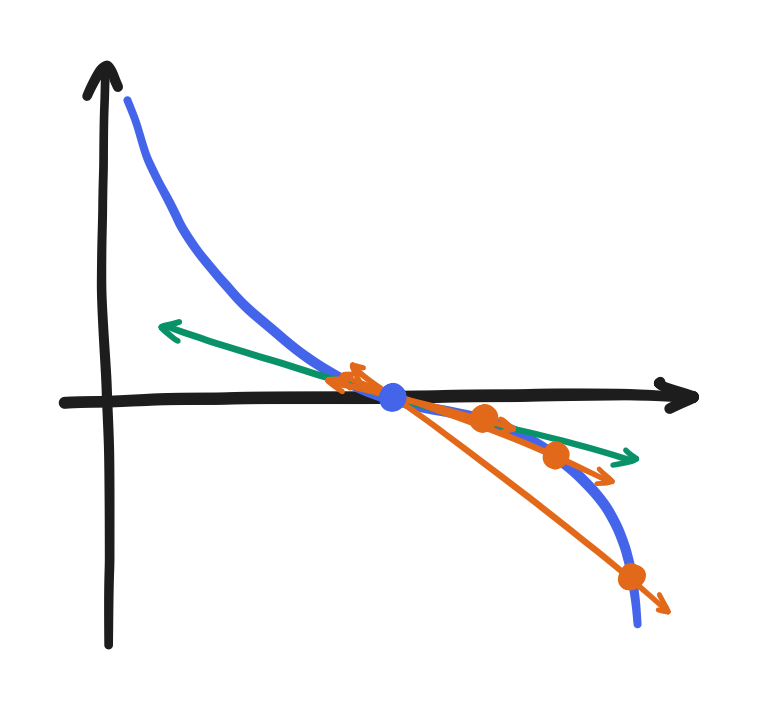

In general, there are many different ways to approximate the derivative using different pairs (or even larger combinations of) of neighboring points. Anyway, that’s out of scope. We should focus on the common cases. The above expression shows the “backward” difference, taking a point and its preceding point. The other two common cases are the “forward” difference and the “central” difference, which come from different, yet equivalent, definitions of the derivative.

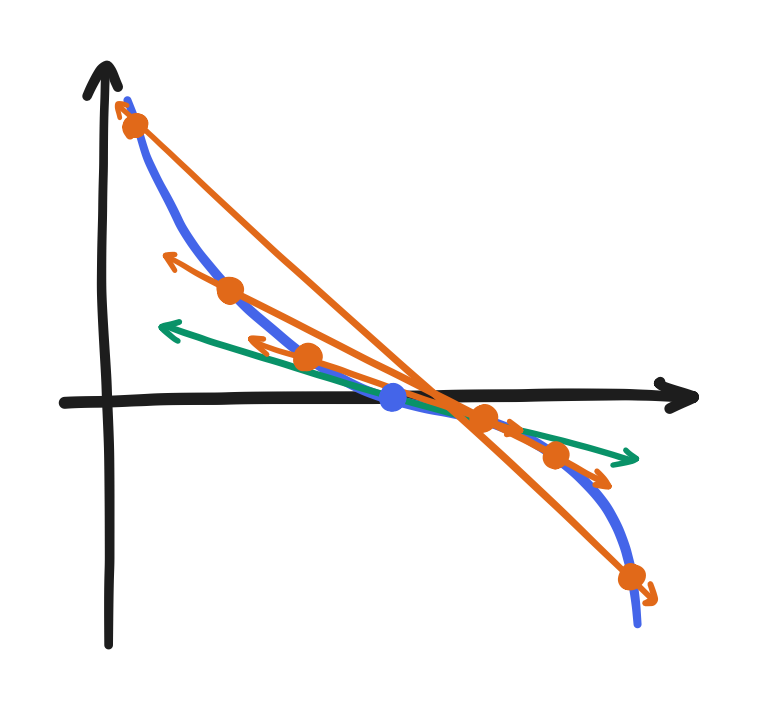

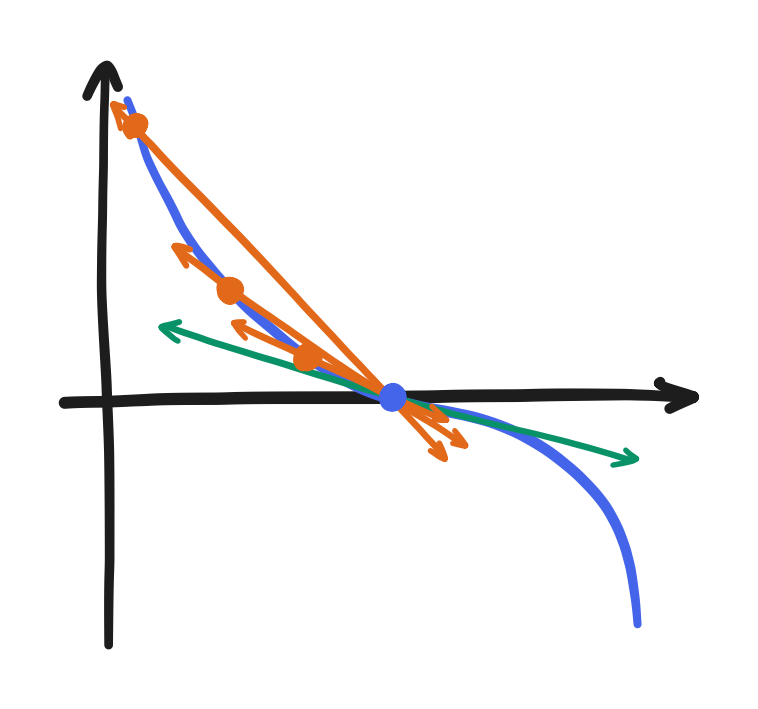

The forward difference uses a point and its succeeding point,
\[\frac{df}{dx} \approx \frac{f(x + \Delta x) - f(x)}{\Delta x}\]
and the central difference uses the preceding point and the succeeding point.
\[\frac{df}{dx} \approx \frac{f(x + \Delta x) - f(x - \Delta x)}{2 \Delta x}\]
All of these expressions converge on the same value as $\Delta x$ shrinks, but we’ll end up using the central difference the most. That said, the forward and backward differences also get involved in today’s scheme.
Anyway, because we discretized the fields with grids, this approximation is useful to us. First, extending this idea to partial derivatives is quite simple! Recall that it’s the derivative of a field with respect to one component while keeping all others constant. Because we discretized space with a grid, all points have left, right, top, and bottom neighbors (all besides the ones on the boundary, but we’ll get to them at some point). So, we can use the preceding and succeeding neighbors in each direction, $\frac{\partial f}{\partial x}$ using the left and right and $\frac{\partial f}{\partial y}$ using the top and bottom.
\[\frac{\partial f}{\partial x} \approx \frac{f(x + \Delta x, y) - f(x - \Delta x, y)}{2 \Delta x}\] \[\frac{\partial f}{\partial y} \approx \frac{f(x, y + \Delta y) - f(x, y - \Delta y)}{2 \Delta y}\]
Finally, recall that a field that’s discretized with a grid can be represented by an array, and so we can rewrite the above central differences using indices.
\[g_x[i, j] = \frac{f[i+1, j] - f[i-1, j]}{2 \Delta x}\] \[g_y[i, j] = \frac{f[i, j+1] - f[i, j-1]}{2 \Delta y}\]With this, approximating the differential operators is as easy as taking their definitions and replacing each partial derivative with its finite difference counterpart. Let’s write out the ones we’ll use for the rest of this article.
Discretizing the gradient and the divergence with the central differences gets the following:
\[\nabla f = \begin{bmatrix} \displaystyle \frac{\partial f}{\partial x} \\[1em] \displaystyle \frac{\partial f}{\partial y} \end{bmatrix} \approx \begin{bmatrix} \displaystyle \frac{f[i+1, j] - f[i-1, j]}{2 \Delta x} \\[1em] \displaystyle \frac{f[i, j+1] - f[i, j-1]}{2 \Delta y} \end{bmatrix}\] \[\nabla \cdot \bold{f} = \frac{\partial f_x}{\partial x} + \frac{\partial f_y}{\partial y} \approx \frac{f[i+1, j] - f[i-1, j]}{2 \Delta x} + \frac{f[i, j+1] - f[i, j-1]}{2 \Delta y}\]That leaves the Laplacian. There happens to be a “but actually” to discuss here. You may recall from Part 3 that the Laplacian is the divergence of the gradient but also that it can be written as a sum of the second partial (non-mixed) derivatives.
\[\nabla^2 f \equiv \nabla \cdot (\nabla f) = \frac{\partial^2 \! f}{\partial x^2} + \frac{\partial^2 \! f}{\partial y^2}\]One possible discrete approximation—one that uses what we’ve already mentioned—is to take the discrete gradient and then take the discrete divergence. Instead, the typical thing to do builds upon the latter definition. A second derivative can itself be approximated with finite differences, and the central difference way to do it is this:
\[\frac{d^2 \! f}{d x^2} \approx \frac{f(x+\Delta x) - 2f(x) + f(x - \Delta x)}{\Delta x^2}\]After extending this approximation to the partial derivative and rewriting it in terms of array values, that latter definition becomes the following.
\[\frac{\partial^2 \! f}{\partial x^2} + \frac{\partial^2 \! f}{\partial y^2} \approx \frac{f[i+1, j] - 2 f[i,j] + f[i-1, j]}{\Delta x^2} + \frac{f[i, j+1] - 2 f[i, j] + f[i, j-1]}{\Delta y^2}\]Finally, if the grid is square—that is, $\Delta x = \Delta y$—then the $f[i,j]$ terms can be combined cleanly, and it just reduces to this:
\[\frac{\partial^2 \! f}{\partial x^2} + \frac{\partial^2 \! f}{\partial y^2} \approx \frac{f[i+1,j] + f[i-1,j] + f[i, j+1] + f[i, j-1] - 4 f[i, j]}{\Delta x^2}\]This is how the Laplacian is typically discretized, but it’s actually not equal to the discrete divergence of the discrete gradient. Going about it that way happens to get you the above but with $\Delta x$ and $\Delta y$ being twice as large and the neighbor’s neighbor being used (two to the left, two to the right, etc.). And, for the record, it didn’t look that good when I tried it.
Really, it goes to show that the “Stable Fluids” discretization will be simple but not very faithful to the original boundary value problem. Once before, years ago, I didn’t realize it could be flawed, and I lost many hours because of that. On another note, I reached out a year ago to Stam about it, and he mentioned that he instead used the “marker-and-cell (MAC) method” in his past professional work on Maya (now Autodesk Maya) and I managed to work out after that the MAC method does happen to make the two equal.
Anyway, that’s the finite difference discretization (or, well, a simple case of it) and how it is applied to the gradient, divergence, and Laplacian. It’s a fundamental concept to grasp because—as you will see—a discrete approximation of differential operators can turn our boundary value problem into something we can solve.
So, how do we use finite differences to solve the problem? At this point, the “Stable Fluids” paper goes on to use a technique that will not fly here. If you’re curious about it, Stam had originally defined a different problem that used periodic boundary conditions, i.e. wrap-around from right to left, top to bottom, etc., and that allowed him to use the fast Fourier Transform (FFT). Since we’d want the fluid to collide into and generally stay within the boundary, we’re stuck with Neumann boundary conditions and no FFT. Anyway, we can instead turn to the method found in Stam’s “Real-time Fluid Dynamics for Games” or also the GPU Gems chapter. Those sources essentially line up with “Stable Fluids” up to here. But first, I’ll take the time to emphasize some of the context.
To begin with, we need to apply the finite difference discretization to the boundary value problem. I’ll say here that we need to treat both the governing equation and the boundary conditions simultaneously.
The governing equation, being just a case of Poisson’s equation, is simple enough; we just replace the Laplacian and the divergence with their discrete counterparts. In those articles, the central difference version with a square grid is used, so that’s what we’ll use here. Overall, the governing equation becomes this:
\[\frac{p[i+1, j] + p[i-1, j] + p[i, j+1] + p[i, j-1] - 4 p[i, j]}{\Delta x^2} = d[i, j]\]where $d[i, j]$ is defined as the discrete divergence of $\bold{w}$
\[d[i,j] = \frac{w_x[i+1, j] + w_x[i-1, j] + w_y[i, j+1] + w_y[i, j-1]}{2 \Delta x}\]Notice here that $d[i, j]$ is purely a function of some elements of $\bold{w}$, which is the given uncorrected velocity. That means we can treat $d[i, j]$ as a known value. Also notice here that discretizing the Poisson equation causes us to not have a just one unknown anymore. Given some $i$ and $j$, there are five unknown elements of $p$ and one known element of $d$, and that’s not solvable.
Before we deal with that, the boundary conditions are the other half we need to discretize. You may have noticed a plot hole here already: there isn’t always a left, up, right, or down neighbor. $p[i-1, j]$ doesn’t exist if $i = 0$. Now, remember how we used ghost points to complete the bilinear interpolation at the boundary? I’ll show that we can discretize our Neumann condition with the same ghost points that we covered in part 4, and in doing so we’ll find out what to do here.
I do have to preface this with something real quick, though. As I brought up earlier, the directional derivative of $p$ with respect to the normal is equal to the component of $\bold w$ in that direction. This statement I pulled from the Chorin and Marsden book. However, in Stam’s “Stable Fluids” and the GPU Gems article, the same boundary value problem is presented but with the directional derivative stated as being equal to zero. It’s a clear discrepancy.
It comes from grid choice. Remember from Part 4 that the boundary is supposed to simulate a wall that runs between the last real row and the ghost row. That was accomplished by making the ghost rows and columns take the negative because that makes the value of the bilinear interpolation at the “wall” equal to zero by definition. If $\bold{w}$ at the boundary is zero, then $\bold{w} \cdot \bold{n}$ must be zero. If $\bold{w} \cdot \bold{n}$ is zero, then even when following the definition from Chorin and Marsden, $\frac{\partial p}{\partial \bold{n}}$ must be zero.
That out of the way, our boundary condition just manifests as setting $\frac{\partial p}{\partial x}$ or $\frac{\partial p}{\partial y}$ because the domain is rectangular. Let’s see what to do on the top side first. There, the normal direction is the $+y$-direction. That is, $\frac{\partial p}{\partial \bold{n}} = 0$ manifests as $\frac{\partial p}{\partial y} = 0$. We then replace $\frac{\partial p}{\partial y}$ with its finite difference counterpart, but there’s a twist. The forward difference, not the central difference, is used. That gets us the following.
\[\frac{p[i, N] - p[i, N-1]}{\Delta x} = 0\]where $i$ is any horizontal index, $N-1$ is the vertical index of the last real row, and $N$ is the vertical index of the ghost row. The implication of this statement is obvious: the ghost row must take on values equal to that of the real row.
\[p[i, N] = p[i, N-1]\]Though it may sound strange that we switched from applying the central difference to the forward difference, I think we can imagine together what it would imply if we kept it: at the top boundary, the central difference must be equal to zero
\[\frac{p[i, N] - p[i, N-2]}{2 \Delta x} = 0\]and therefore the ghost row should take on the values of the second-to-last row.
\[p[i, N] = p[i, N-2]\]That conclusion doesn’t sound as natural.
The same conclusion should be expected for all sides. For the bottom side, it’s reached by applying the backward difference on $\frac{\partial p}{\partial y} = 0$. For the right side, the forward difference on $\frac{\partial p}{\partial x} = 0$, and for the left, the backward difference on $\frac{\partial p}{\partial x} = 0$. It should sound quite similar to what we did for the bilinear interpolation, though back then the ghost row had to take on the negative.
To recap, the governing equation is discretized with finite differences, and the Neumann boundary condition is handled by reintroducing the ghost row but this time letting it essentially be the real row repeated (same going for the columns). That completes the finite difference version of our boundary value problem! Which leaves solving it, and with what else but a computer? Now, there’s that, and then there’s solving it with an ESP32 for the computer. If my goal was to explain the former, then quoting my sources would’ve been effective enough, but here’s comes the necessary context.
For one, didn’t I say this involved “sparse matrices”? Here they are.
Review: Sparse matrices
You may or may not be familiar with “sparse matrices”. If you are, then you would know that they enable a great deal of optimization on a computer—to a point where even the big-O complexity is lower—without changing any of the linear algebra stuff. With such drastic improvement for free on the table, “sparse matrices” are an essential topic. And that’s all for, well, “sparse matrices” just being matrices with a lot of zeroes.
Generally speaking, zero can be effectively implemented by doing nothing or storing nothing. Conversely, actual computation and memory is focused on the non-zero elements.

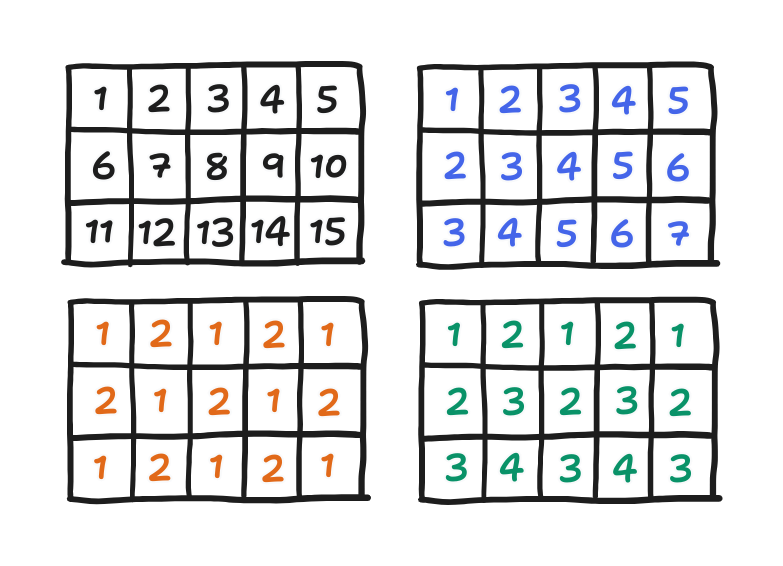

I mentioned in the last part that it is more useful to think of fields—which are arrays when discretized—as very long vectors. Where was I going with that, exactly? Our arrays are a 2D arrangement of data, with the position of each element neatly corresponding to a 2D location. Now, we care less for this correspondence when we’re doing the linear algebra. Vectors are a 1D arrangement of data. To rearrange the array into a vector, convention tells us to read out the data like a book, increasing in i from left to right, then increasing in j from… bottom to top, actually, to stay within the Cartesian perspective. Once again, I already discussed the difference between matrix indexing and Cartesian indexing in Part 3. And of course, the conventional order isn’t the only order, and we’ll get to another one in this article soon enough.

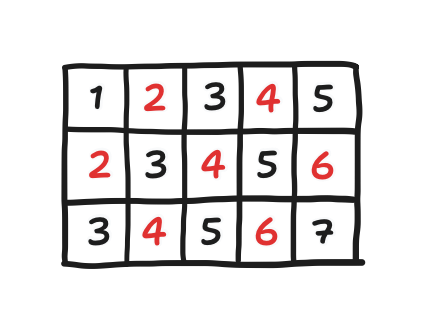

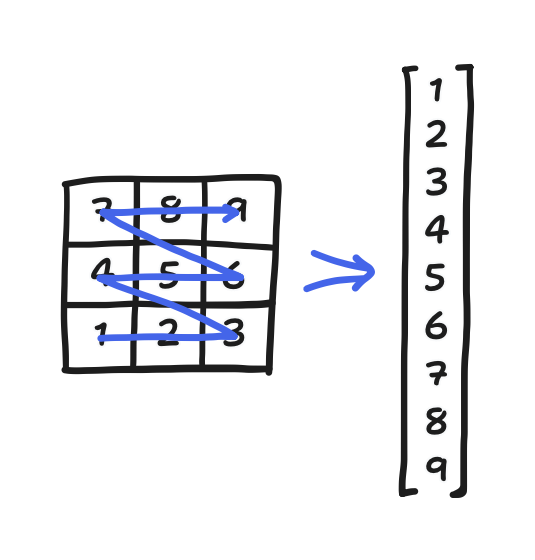

Let’s make this concrete with an example. Consider a three-by-three grid and some scalar field $x$. Then, the discretization of $x$ on that grid is a three-by-three array. Reading out its elements gets a nine-element vector. All that is depicted below.

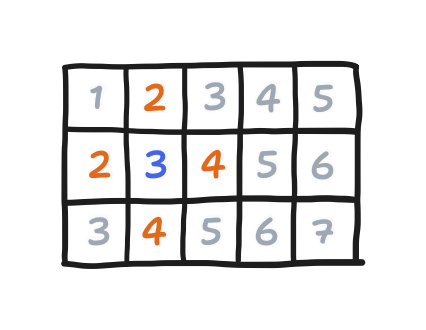

Let’s look at points 5 and 8. They’re right next to each other in 2D space, but now they’re so far apart on the vector! Such things happen with the conventional order.
More importantly, with arrays rearranged as vectors, we can show that our boundary value problem, when discretized the way we’ve done it, is a classic $Ax = b$ problem! If we let $x$ be the pressure vector and $b$ be the divergence, then the $i$-th row of $A$ represents the equation for some specific point with location $i,\; j$ (yes, unfortunately $i$ and $j$ have double meanings here, one for indexing arrays/grids and one for indexing matrices), relating the $i$-th element of the divergence vector to the $i$-th element of the pressure vector, plus an element for each neighbor. Because of the conventional order, those neighbors would be the $(i+1)$-th, $(i-1)$-th, $(i+N)$-th, and $(i-N)$-th elements, where $N$ is the horizontal length of the array.
Let’s demonstrate this by determining the $A$ for our previous three-by-three example.
Starting from the governing equation, we can rewrite the left side so that the division by $\Delta x^2$ is multiplication by $\frac{1}{\Delta x^2}$.
\[\frac{1}{\Delta x^2} \big( p[i + 1, j] + p[i - 1, j] + p[i, j + 1] + p[i, j - 1] - 4 p[i, j] \big) = d[i, j]\]This helps save some repetitive writing by defining $A = \frac{1}{\Delta x^2} B$, where $B$ just has the same coefficients as $A$ but with $\frac{1}{\Delta x^2}$ factored out.
Next, we recognize that, in a three-by-three matrix, $N = 3$. It follows that, for some given center $p[i, j]$ in the array, which maps to $p_i$ in the vector, getting the down neighbor $p[i, j - 1]$ is to get $p_{i - 3}$.
Let’s see this in action. The center element $i=1,\;j=1$ is the only element with all-real neighbors, so it stands for the typical case where the boundary conditions don’t apply. Following the conventional order, it’s the 5th element of the vector, $p_{5}$, and the governing equation here can be written as this.
\[\frac{1}{\Delta x^2} \big( p_6 + p_4 + p_8 + p_2 - 4 p_5 \big) = d_5\]We can then fill in the corresponding row of $A$ like this:
\[\frac{1}{\Delta x^2} \begin{bmatrix} \\ \\ \\ \\ 0 & 1 & 0 & 1 & -4 & 1 & 0 & 1 & 0 \\ \\ \\ \\ \! \end{bmatrix} \begin{bmatrix} p_1 \\ p_2 \\ p_3 \\ p_4 \\ p_5 \\ p_6 \\ p_7 \\ p_8 \\ p_9 \end{bmatrix} = \begin{bmatrix} d_1 \\ d_2 \\ d_3 \\ d_4 \\ d_5 \\ d_6 \\ d_7 \\ d_8 \\ d_9 \end{bmatrix}\]In this row, the element corresponding to $i=1,\;j=1$ itself gets a $-4$, the ones corresponding to its neighbors get a $1$, and all other elements get a zero. In general, because the discretized governing equation, being the instance of Poisson’s equation that it is, just relates the five elements of the pressure vector to an element of the divergence vector, all the coefficients for the other elements–the rest of the $i$-th row of $A$–must be zero. $A$ is sparse!
With that said, for the points along the boundary, some of those neighbors don’t exist, and as a result, their rows end up slightly different. For example, one step to the left lands us on $i = 0,\;j = 1$, which is on the left boundary, so applying our discretized Neumann boundary condition gets us this equation
\[\frac{p[i+1, j] + p[i, j+1] + p[i, j-1] - 3 p[i, j]}{\Delta x^2} = d[i, j]\]where the terms canceling gets us this $-3$ instead of a $-4$. Following the same treatment as before, it’s corresponding row in $A$ looks like this:
\[\frac{1}{\Delta x^2} \begin{bmatrix} \\ \\ \\ 1 & 0 & 0 & -3 & 1 & 0 & 1 & 0 & 0 \\ 0 & 1 & 0 & 1 & -4 & 1 & 0 & 1 & 0 \\ \\ \\ \\ \! \end{bmatrix} \begin{bmatrix} p_1 \\ p_2 \\ p_3 \\ p_4 \\ p_5 \\ p_6 \\ p_7 \\ p_8 \\ p_9 \end{bmatrix} = \begin{bmatrix} d_1 \\ d_2 \\ d_3 \\ d_4 \\ d_5 \\ d_6 \\ d_7 \\ d_8 \\ d_9 \end{bmatrix}\]One step up lands on $i = 0, \; j = 2$, which is on both the left and top boundary, and that gets us the following equation,
\[\frac{p[i+1, j] + p[i, j-1] - 2 p[i, j]}{\Delta x^2} = d[i, j]\]and its corresponding row looks like this.
\[\frac{1}{\Delta x^2} \begin{bmatrix} \\ \\ \\ 1 & 0 & 0 & -3 & 1 & 0 & 1 & 0 & 0 \\ 0 & 1 & 0 & 1 & -4 & 1 & 0 & 1 & 0 \\ \\ 0 & 0 & 0 & 1 & 0 & 0 & -2 & 1 & 0 \\ \\ \! \end{bmatrix} \begin{bmatrix} p_1 \\ p_2 \\ p_3 \\ p_4 \\ p_5 \\ p_6 \\ p_7 \\ p_8 \\ p_9 \end{bmatrix} = \begin{bmatrix} d_1 \\ d_2 \\ d_3 \\ d_4 \\ d_5 \\ d_6 \\ d_7 \\ d_8 \\ d_9 \end{bmatrix}\]All the possibilities—in the three-by-three example or in any size of screen—is covered by these cases after adjusting for whichever neighbors are in a ghost row/column. Let’s fill in the rest of $A$.
\[\frac{1}{\Delta x^2} \begin{bmatrix} -2 & 1 & 0 & 1 \\ 1 & -3 & 1 & 0 & 1 \\ 0 & 1 & -2 & 0 & 0 & 1 \\ 1 & 0 & 0 & -3 & 1 & 0 & 1 \\ & 1 & 0 & 1 & -4 & 1 & 0 & 1 \\ & & 1 & 0 & 1 & -3 & 0 & 0 & 1 \\ & & & 1 & 0 & 0 & -2 & 1 & 0 \\ & & & & 1 & 0 & 1 & -3 & 1 \\ & & & & & 1 & 0 & 1 & -2 \end{bmatrix} \begin{bmatrix} p_1 \\ p_2 \\ p_3 \\ p_4 \\ p_5 \\ p_6 \\ p_7 \\ p_8 \\ p_9 \end{bmatrix} = \begin{bmatrix} d_1 \\ d_2 \\ d_3 \\ d_4 \\ d_5 \\ d_6 \\ d_7 \\ d_8 \\ d_9 \end{bmatrix}\]Here, the empty elements are also zero. Blank elements are part of the typical notation for sparse matrices.
That completes this sketch of a specific $A$ and a description for how to construct $A$ for any particular grid. I should pause here for a moment and note that what we have so far is quite interesting. So far, we have
- sought to achieve the incompressibility constraint using the Helmholtz-Hodge decomposition,
- found that we need to solve the supporting boundary value problem,
- applied a finite difference discretization to it, and
- arrived at just a case of $Ax = b$.
When it comes to that $Ax = b$, $b$ takes from the divergence of the uncorrected velocity field, $x$ takes from the pressure field, and $A$ takes from the governing equation and the boundary conditions. Just by solving it for $x$, we find the pressure field that solves the boundary value problem. With that, the next step would be to use the Helmholtz-Hodge decomposition to extract out the divergence-free component of our velocity. Recall, that this means subtracting the gradient of the pressure from it. We implement this by subtracting the discrete gradient.
\[v_x[i, j] = w_x[i, j] - \frac{p[i+1, j] - p[i-1, j]}{2 \Delta x}\] \[v_y[i, j] = w_y[i, j] - \frac{p[i, j+1] - p[i, j-1]}{2 \Delta y}\]And with the divergence-free velocity, the incompressibility constraint is achieved, giving realistic, fluid-like motion. It’s a real problem in a problem in a problem! But we still haven’t solved it yet. Remember that the Helmholtz-Hodge decomposition tells us that the pressure field exists, but not how to find it. Let’s now talk about getting that done.
The expression of the boundary value problem as just a case of $Ax = b$ was part of the context I needed to know. In my first (failed) attempt to get a fluid sim on an ESP32, I only knew Stam’s “Real-Time Fluid Dynamics for Games”, Wong’s post, and the GPU Gems article. I got quite far on a PC, but it was no good on an ESP32. Those sources didn’t mention the $Ax = b$ explicitly. But now, you and I can discuss how to solve the problem using “Jacobi iteration” but also “Gauss-Seidel iteration” or “successive over-relaxation” (SOR). In general, these are “iterative methods”, computational routines that can be said to “converge” onto the solution. With enough number-crunching, one can get arbitrarily close to the solution, though they never get the solution exactly.
First, what is “Jacobi iteration”, and how does it apply?
$A$ is a square matrix. That comes from the pressure and divergence vectors being constructed from the same grid of points, thus having the same number of elements. Assuming $A$ is furthermore invertible (technically it’s not because we only have Neumann conditions, but we’ll get to that) then perhaps we could solve by calculating $A^{-1} b$. However, that’s an $O(N^3)$ operation—far too expensive, considering in this case that $N$ is the total number of points on the grid! To get something faster, we must exploit the sparsity of $A$, and Jacobi iteration happens to let us do that.

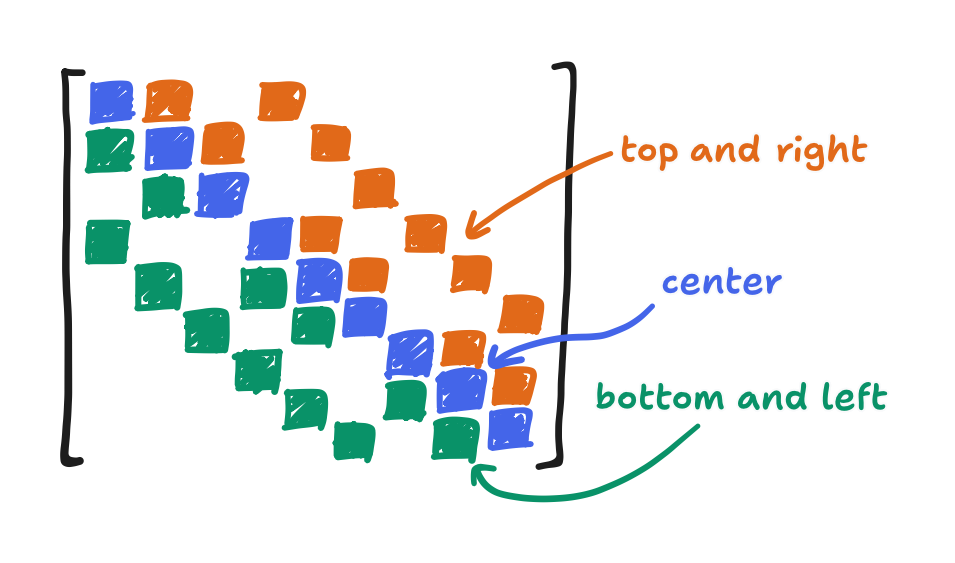

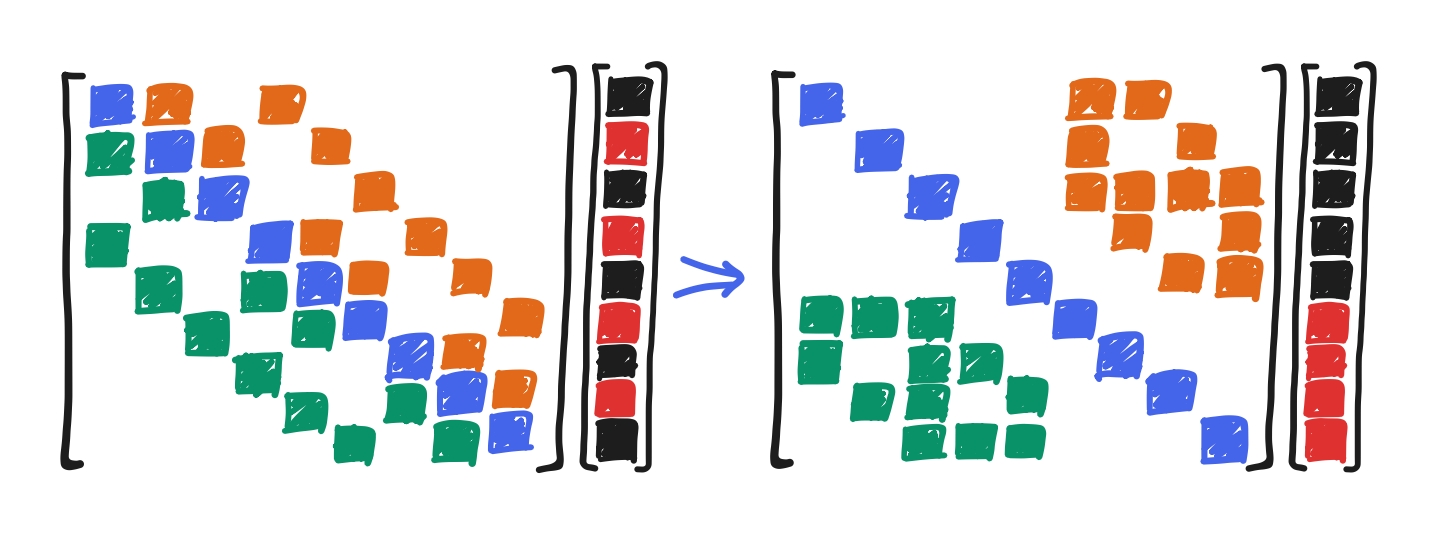

So, we start by expressing $A$ as the sum of (1) a cut-out of $A$ along the diagonal, hereby called $D$, and the rest of $A$, otherwise describable as (2) an upper-triangular part that we’ll call $U$ plus (3) a lower-triangular part we’ll call $L$.
\[A = D + L + U\] \[\begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \\ a_{21} & a_{22} & \cdots & a_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ a_{n1} & a_{n2} & \cdots & a_{nn} \end{bmatrix} = \begin{bmatrix} a_{11} \\ & a_{22} \\ & & \ddots \\ & & & a_{nn} \end{bmatrix} + \begin{bmatrix} 0 \\ a_{21} & 0 \\ a_{31} & a_{32} & 0 \\ \vdots & \vdots & \ddots & \ddots \\ a_{n1} & a_{n2} & \cdots & a_{n(n-1)} & 0 \end{bmatrix} + \begin{bmatrix} 0 & a_{12} & a_{13} & \cdots & a_{1n} \\ & 0 & a_{23} & \cdots & a_{2n} \\ & & 0 & \ddots & \vdots \\ & & & \ddots & a_{(n-1)n} \\ & & & & 0 \end{bmatrix}\]Consider $a_{ij}$ where $i = j$, or in other words $a_{ii}$. The $i$-th point in the $i$-th row, which represents the governing equation centered at the $i$-th point, must always be the center. It follows that the diagonal cut-out $D$, which takes the elements $a_{ii}$, is taking the coefficients of the centers. That’s the $-4$’s, $-3$’s, and $-2$’s. Now consider how the conventional order is left-to-right then bottom-to-top. The lower-triangular cut-out $L$ contains all elements preceding the center. That is, it contains the left and bottom neighbors! The upper-triangular cut-out $U$ contains all elements succeeding the center i.e. the right and top neighbors!
That aside, in this decomposition, it happens that $D$ is a diagonal matrix. As a result, we can say that its inverse $D^{-1}$ is just a matrix with reciprocals along the diagonal.
\[D^{-1} = \begin{bmatrix} a_{11}^{-1} \\ & a_{22}^{-1} \\ & & \ddots \\ & & & a_{nn}^{-1} \end{bmatrix}\]With that in mind, we can derive the following equation from $Ax = b$,
\[\begin{align*} A x & = b \\ (D + L + U) x & = b \\ Dx + (L+U)x & = b \\ Dx & = b - (L+U) x \\ x & = D^{-1} (b - (L+U) x) \end{align*}\]where $x$ appears in two places. From there, Jacobi iteration is to let the right-hand $x$ be some guess at the solution that we’ll call $x^{(k)}$ and let the left-hand $x$ be the updated guess $x^{(k+1)}$.
\[x^{(k+1)} = D^{-1} (b - (L+U) x^{(k)})\]In a moment, we’ll show that—given a specific condition holds—$x^{(k+1)}$ is always a better guess than $x^{(k)}$.
First, let’s see how the expression $D^{-1} (b - (L+U)x)$ manifests in practice. How is it faster than inverting $A$? Where do the sparse matrices come in? We just need to go get one element of $x^{(k+1)}$ at a time.
We know that $D^{-1}$, like $D$, is diagonal, and multiplying a vector by a diagonal matrix happens to be equivalent to multiplying each $i$-th element with its corresponding $a_{ii}^{-1}$.
\[\begin{bmatrix} a_{11}^{-1} \\ & a_{22}^{-1} \\ & & \ddots \\ & & & a_{nn}^{-1} \end{bmatrix} \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_n \end{bmatrix} = \begin{bmatrix} a_{11}^{-1} x_1 \\ a_{22}^{-1} x_2 \\ \vdots \\ a_{nn}^{-1} x_n \end{bmatrix}\]So, to acquire some $i$-th element of $x^{(k+1)}$, we can at least compute $b - (L+U) x^{(k)}$ in its entirety, pick the $i$-th element of that, then multiply it by $a_{ii}^{-1}$. Next, to subtract $(L+U)x^{(k)}$ from $b$ is of course equivalent to subtracting each element of $(L+U)x^{(k)}$ from its corresponding element of $b$. That leaves $(L+U)x^{(k)}$ by itself.

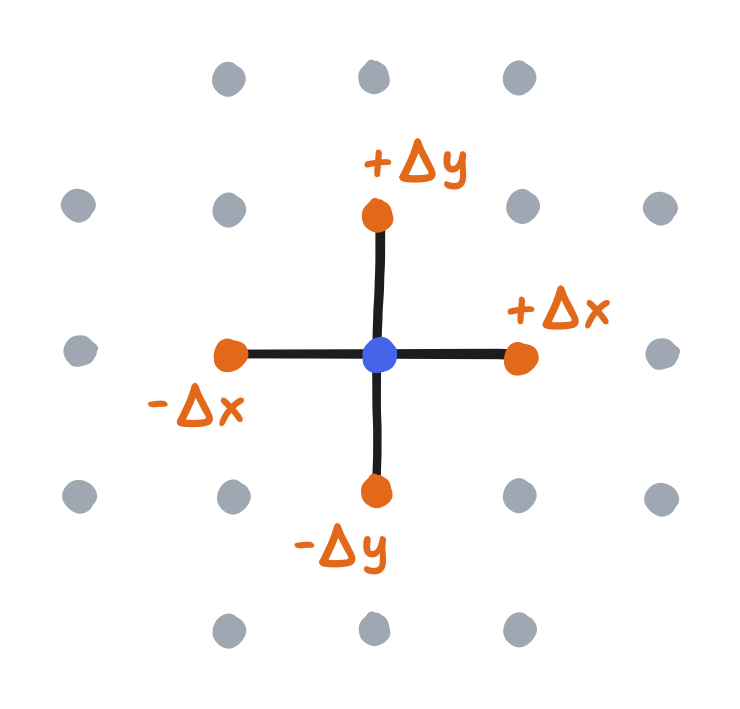

Well, remember where we came from: $A$ is a sparse because each of its rows is just a discretized instance of Poisson’s equation. Said equation only involves the center point and its neighbors. If $D$ contained all the center coefficients, then $L+U$ is just the neighbor coefficients. That is, the $i$-th element of $(L+U)x^{(k)}$ is just a sum of the four neighbor terms.
\[\frac{p[i+1, j] + p[i-1, j] + p[i, j+1] + p[i, j-1]}{\Delta x^2}\]It’s a sum of the four neighbor terms when there are four of them, anyway. So that I may keep it concise, whenever you see a $-4$ and four terms, please adjust it to a $-3$ and three terms or $-2$ and two terms at the boundary.
From the bottom to the top, $D^{-1}(b-(L+U)x^{(k)})$ can be computed one element at a time. It’s a composition of three operations: multiplication by $a_{ii}^{-1}$, subtraction from $b_i$, and the summing of the neighbor terms. If we put it all together, we get this:
\[p^{(k+1)}[i, j] = - \frac{\Delta x^2}{4} \left( d[i, j] - \frac{p^{(k)}[i+1, j] + p^{(k)}[i-1, j] + p^{(k)}[i, j+1] + p^{(k)}[i, j-1]}{\Delta x^2} \right)\]Apart from a bit of algebra, this is identical to the derivations of Jacobi iteration in Wong’s post and the GPU Gems article. Not bad!
Now, why is this fast? Generally speaking, if $A$ was not sparse, then a row of $(L+U)$ wouldn’t contain the four neighbors but rather $N$ terms, and as expected, the complexity of its dot product with $x$ is $O(N)$. Doing that for each of the $N$ rows of $A$ gives the expected complexity of a matrix-vector multiply, $O(N^2)$. Now, if a row had only four non-zero coefficients? And if we could just skip all the zeroes? The complexity of that dot product falls to $O(1)$, and the complexity of a matrix-vector multiply falls to $O(N)$–linear time! And given that it’s in the service of solving a $Ax = b$ problem, that’s far better than the expected $O(N^3)$! The catch: if we want to iterate as many times as it’ll take to achieve a fixed amount of improvement, independent of the grid size, the total complexity is higher. Really, true linear complexity lies in the domain of multigrid methods, which is way outside when I’m familiar with and outside the scope of this article. We’ll instead iterate a fixed number of times and call it day.
Here’s what the code for that would look like. Please forgive my extensive use of pointers here.
struct pois_context {
float *d;
float dx;
};
static inline int index(int i, int j, int dim_x) {
return dim_x*j+i;
}
static float pois_expr_safe(float *p, int i, int j, int dim_x, int dim_y,
void *ctx)
{
struct pois_context *pois_ctx = (struct pois_context*)ctx;
int i_max = dim_x-1, j_max = dim_y-1;
float p_sum = 0;
int a_ii = 0;
if (i > 0) {
p_sum += *(p-1);
++a_ii;
}
if (i < i_max) {
p_sum += *(p+1);
++a_ii;
}
if (j > 0) {
p_sum += *(p-dim_x);
++a_ii;
}
if (j < j_max) {
p_sum += *(p+dim_x);
++a_ii;
}
static const float neg_a_ii_inv[5] = {0, 0, -1.0/2.0, -1.0/3.0, -1.0/4.0};
int ij = index(i, j, dim_x);
return neg_a_ii_inv[a_ii] * (pois_ctx->dx * pois_ctx->d[ij] - p_sum);
}
void poisson_solve(float *p, float *div, int dim_x, int dim_y, float dx,
int iters, float *scratch)
{
float *wrt = p, *rd = scratch, *temp;
int ij;
for (ij = 0; ij < dim_x*dim_y; ij++) {
p[ij] = 0;
scratch[ij] = 0;
}
struct pois_context pois_ctx = {.d = div, .dims = dims, .dx = dx};
for (int k = 0; k < iters; k++) {
for (int j = 0; j < dim_y; j++) {
for (int i = 0; i < dim_x; i++) {
ij = index(i, j, dim_x);
wrt[ij] = pois_expr_safe(&rd[ij], i, j, dim_x, dim_y, &pois_ctx);
}
}
temp = wrt;
wrt = rd;
rd = temp;
}
if (wrt == scratch) {
for (ij = 0; ij < dim_x*dim_y; ij++) {
p[ij] = scratch[ij];
}
}
}
However! If we want to run this on an ESP32, that is too many if statements to be going through in the main loop. Instead, if we sweep through all the non-boundary elements first, we can skip those if statements. This creates a fast path.
Here’s what that looks like, on top of the previous code.
void domain_iter(float (*expr_safe)(float*, int, int, int, int, void*),
float (*expr_fast)(float*, int, int, int, int, void*), U *wrt,
T *rd, int dim_x, int dim_y, void *ctx)
{
int i_max = (dim_x)-1, j_max = (dim_y)-1; // inclusive!
int ij, ij_alt;
// Loop over the main body
for (int j = 1; j < j_max; ++j) {
for (int i = 1; i < i_max; ++i) {
ij = index(i, j, dim_x);
wrt[ij] = expr_fast(&rd[ij], i, j, dim_x, dim_y, ctx);
}
}
// Loop over the top and bottom boundaries (including corners)
for (int i = 0; i <= i_max; ++i) {
ij = index(i, 0, dim_x);
wrt[ij] = expr_safe(&rd[ij], i, 0, dim_x, dim_y, ctx);
ij_alt = index(i, j_max, dim_x);
wrt[ij_alt] = expr_safe(&rd[ij_alt], i, j_max, dim_x, dim_y, ctx);
}
// Loop over the left and right boundaries
for (int j = 1; j < j_max; ++j) {
ij = index(0, j, dim_x);
wrt[ij] = expr_safe(&rd[ij], 0, j, dim_x, dim_y, ctx);
ij_alt = index(i_max, j, dim_x);
wrt[ij_alt] = expr_safe(&rd[ij_alt], i_max, j, dim_x, dim_y, ctx);
}
}
static float pois_expr_fast(float *p, int i, int j, int dim_x, int dim_y,
void *ctx)
{
struct pois_context *pois_ctx = (struct pois_context*)ctx;
float p_sum = ((*(p-1) + *(p+1)) + (*(p-dim_x) + *(p+dim_x)));
int ij = index(i, j, dim_x);
return -0.25f * (pois_ctx->dx * pois_ctx->d[ij] - p_sum);
}
void poisson_solve(float *p, float *div, int dim_x, int dim_y, float dx,
int iters, float *scratch)
{
float *wrt = p, *rd = scratch, *temp;
for (int ij = 0; ij < dim_x*dim_y; ij++) {
p[ij] = 0;
scratch[ij] = 0;
}
struct pois_context pois_ctx = {.d = div, .dims = dims, .dx = dx};
for (int k = 0; k < iters; k++) {
domain_iter(pois_expr_safe, pois_expr_fast, wrt, rd, dim_x, dim_y,
&pois_ctx);
temp = wrt;
wrt = rd;
rd = temp;
}
if (wrt == scratch) {
for (int ij = 0; ij < dim_x*dim_y; ij++) {
p[ij] = scratch[ij];
}
}
}
That out of the way, why does the Jacobi method work in the first place?
Take the iteration rule and subtract the equation it comes from. Then, it reduces because the $b$ from each cancel.
\[\begin{align*} & & x^{(k+1)} & = D^{-1} (\cancel{b} - (L+U) x^{(k)} )\\ & -( & x & = D^{-1} (\cancel{b} - (L+U) x) & ) \\ \hline \\[-1em] & & x^{(k+1)} - x & = - D^{-1} (L+U) (x^{(k)} - x) \end{align*}\]Consider what $x^{(k+1)}-x$ and $x^{(k)}-x$ mean. They’re the error of our guesses! With every iteration, this error is multiplied by $-D^{-1} (L+U)$! Let’s call this matrix $C_\text{Jac}$.
For ease of explanation, let’s assume that $C_\text{Jac}$ can be diagonalized (for the otherwise defective matrices, there’s another way to go about this that’s similar). Because it can be diagonalized, the error can be expressed as a linear combination of its eigenvectors,
\[x^{(k)} - x = c_1^{(k)} v_1 + c_2^{(k)} v_2 + \dots + c_n^{(k)} v_n\]whereby each component gets multiplied by the corresponding eigenvalue in each iteration.
\[\begin{align*} x^{(k+1)} - x & = C_\text{Jac} (c_1^{(k)} v_1 + c_2^{(k)} v_2 + \dots + c_n^{(k)} v_n) \\ & = c_1^{(k)} C_\text{Jac} v_1 + c_2^{(k)} C_\text{Jac} v_2 + \dots + c_n^{(k)} C_\text{Jac} v_n \\ & = c_1^{(k)} \lambda_1 v_1 + c_2^{(k)} \lambda_2 v_2 + \dots + c_n^{(k)} \lambda_n v_n \end{align*}\]Let’s focus on a single term here—say $c_1^{(k)} \lambda_1 v_1$. On the next iteration, it gets multiplied by $C_\text{Jac}$ again, meaning that it becomes $c_1^{(k)} \lambda_1^2 v_1$. You can see that doing this repeatedly gets us an exponential sequence. The same can be said for the other terms. If any of the eigenvalues have a magnitude that is greater than one, then Jacobi iteration wouldn’t work because the error would explode. However, if all the eigenvalues have magnitudes that are less than one, then the error would converge to zero. The point: $x^{(k+1)}$ would always be a better guess than $x^{(k)}$.
The largest magnitude of all the eigenvalues is said to be the “spectral radius” of the matrix. Some of the eigenvalues having a magnitude over one is the same as the spectral radius being over one. All of them having a magnitude under one is the same as the spectral radius being under one. In the latter case, the eigenvector with the largest magnitude is decaying the slowest, but another way of looking at it is that all error decays at least as fast. For example, if the spectral radius of $C_\text{Jac}$ i.e. “$\rho(C_\text{Jac})$” is 0.9, then 20 iterations would multiply the error by 0.9 20 times. Actually working out what 0.9 to the 20th power is, we get about 0.12, or that the error is cut by about 88 percent. Going further to, say, 40 iterations, we get 0.014, or that the error is cut by 98.5 percent. We could keep going until the result is as accurate as needed. All-in-all, so long as the spectral radius is under one, Jacobi iteration can be used to solve our boundary value problem, giving the pressure field that appropriately fits the Helmholtz-Hodge decomposition.

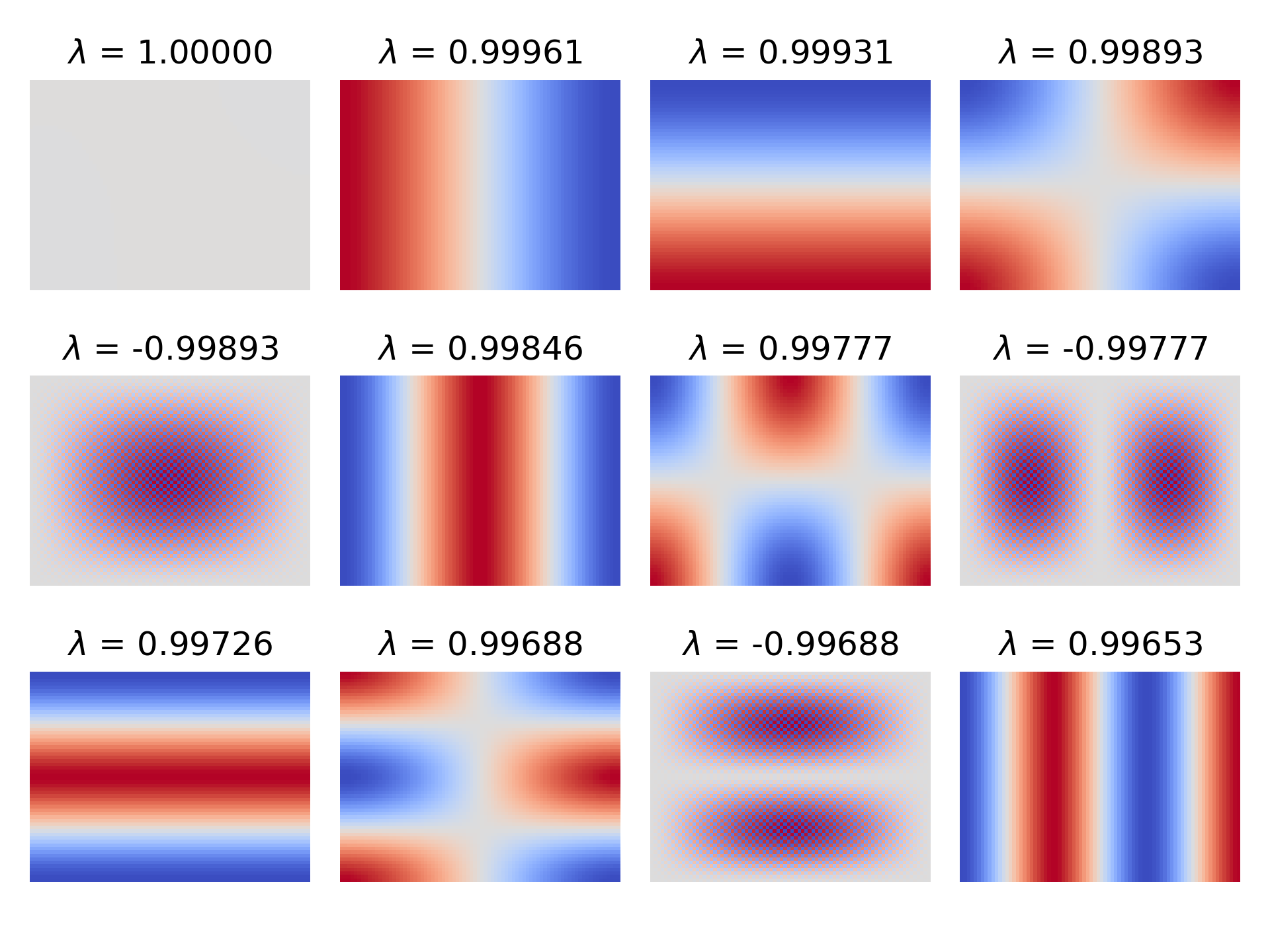

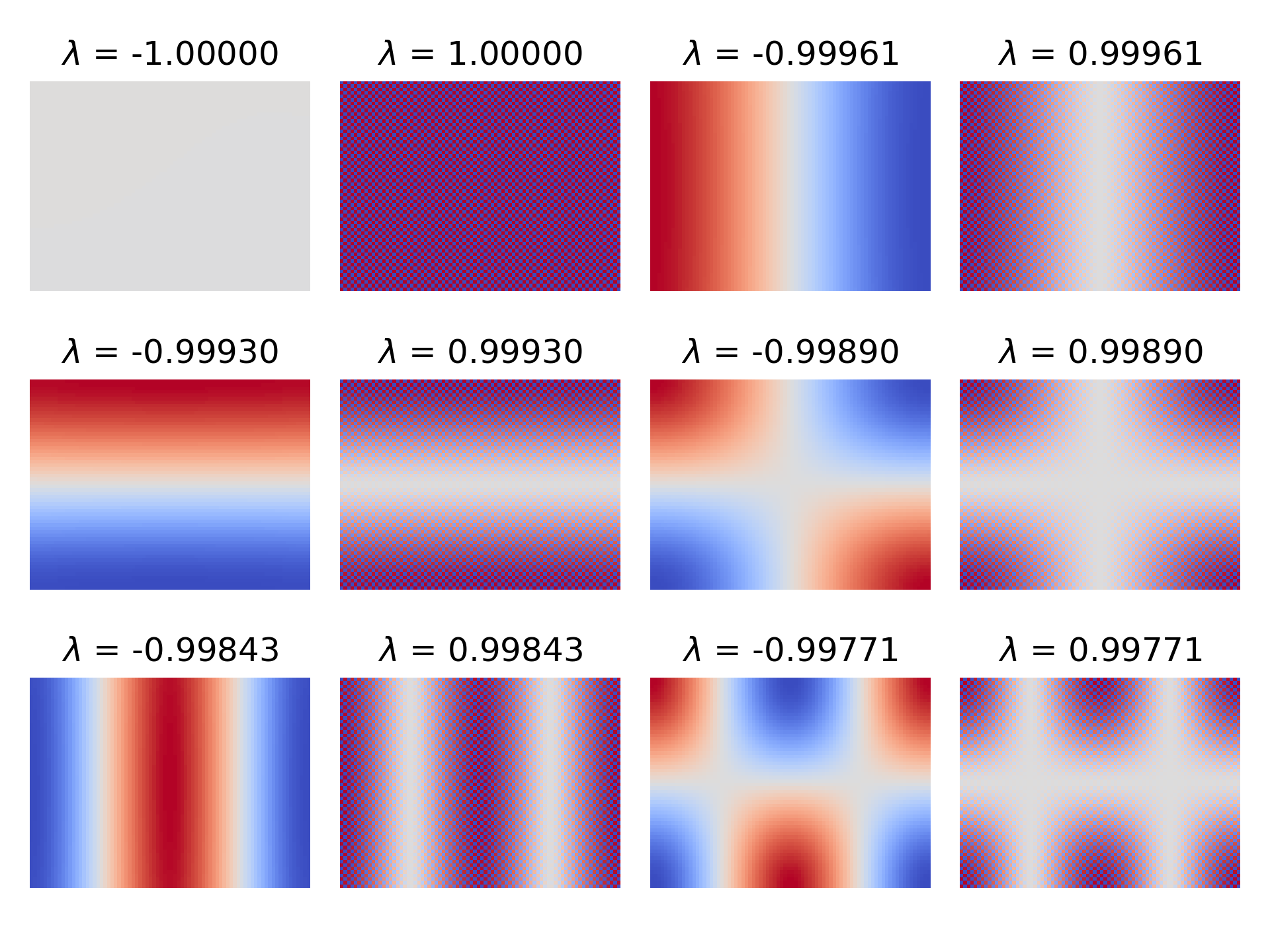

That said, how can we know that it is? What is our spectral radius, actually? Well, about that…

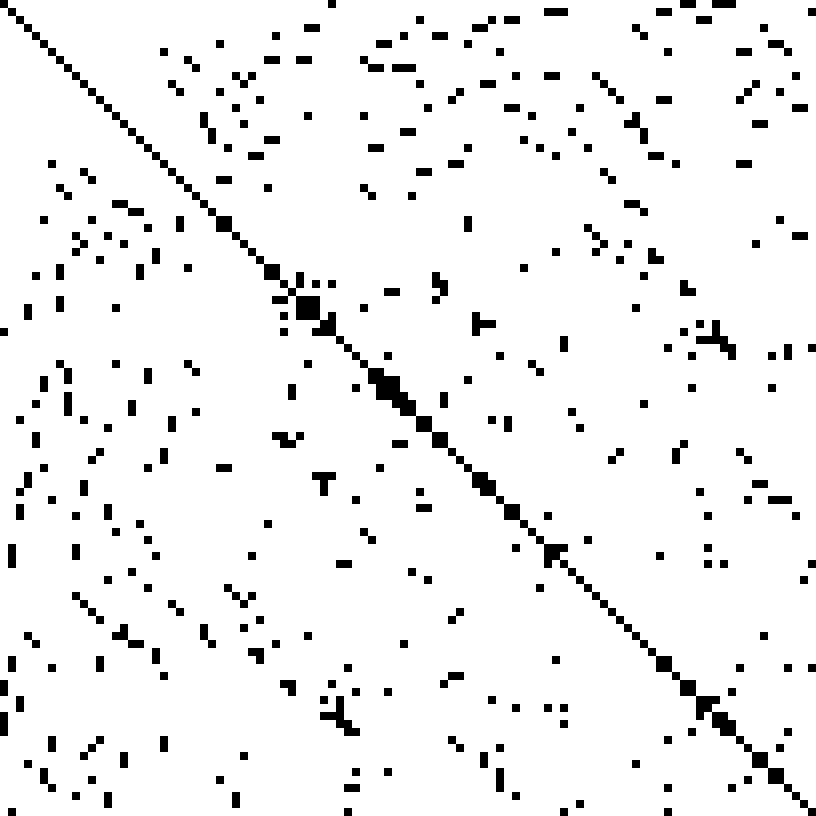

I don’t know any proofs of one way or the other, but I just did provide a general—though not analytic—description of $A$. If we take some specific case of $A$, then there are iterative, sparse algorithms for (approximately) finding the eigenvalues and eigenvectors. In Python, the SciPy package offers one, scipy.sparse.linalg.eigs. Many months back, I thought that it would be perfect for finding the spectral radius. I wrote a script, and here it is.
import numpy as np
from math import prod
from matplotlib import pyplot as plt
import scipy.linalg
from scipy.sparse import csr_array, eye
import scipy.sparse.linalg
DX = 1.0
N_EIGS = 20
N_ROWS = 60
N_COLS = 80
def plot_eigs(
arr: csr_array, subplots: tuple[int, int], neg_first: bool = True, digits: int = 5
):
n_eigs = prod(subplots)
eigs, v = scipy.sparse.linalg.eigs(arr, k=n_eigs, which="LM")
# I haven't seen non-real values, so don't show them for legibility
if np.any(np.imag(eigs)) or np.any(np.imag(v)):
print("warning: eigenvalues or eigenvectors have an imaginary component")
eigs = np.real(eigs)
v = np.real(v)
# round the eigenvalues for legibility, but check for ambiguity
eigs = np.round(eigs, digits)
pairwise_matches = np.count_nonzero(
eigs[:, np.newaxis] == eigs[np.newaxis, :], axis=1
)
if np.any((pairwise_matches > 1) & (eigs != 0)): # ignore self-match and zero
print("warning: rounding has made some eigenvalues ambiguous")
# in case of a pos-neg pair, strictly show pos or neg first
is_pos = eigs > 0
if neg_first: # pos first, then the stable descending sort flips that
eigs = np.hstack([eigs[is_pos], eigs[~is_pos]])
v = np.hstack([v[:, is_pos], v[:, ~is_pos]])
else: # neg first, then the stable descending sort flips that
eigs = np.hstack([eigs[~is_pos], eigs[is_pos]])
v = np.hstack([v[:, ~is_pos], v[:, is_pos]])
permute = np.argsort(np.abs(eigs), stable=True)[::-1]
eigs = eigs[permute]
v = v[:, permute]
MIN_RANGE = 1e-9
for i in range(n_eigs):
eigenvector = v[:, i].reshape((N_ROWS, N_COLS))
v_min = np.min(eigenvector)
v_max = np.max(eigenvector)
if v_max - v_min < MIN_RANGE: # probably a flat plane
v_max += MIN_RANGE
v_min -= MIN_RANGE
plt.subplot(*subplots, i+1)
plt.imshow(eigenvector, vmin=v_min, vmax=v_max, cmap="coolwarm")
plt.axis("off")
plt.title('$\\lambda$ = %0.*f' % (digits, eigs[i]))
plt.tight_layout()
op = scipy.sparse.linalg.LaplacianNd((N_ROWS, N_COLS), boundary_conditions="neumann")
arr = (1 / (DX ** 2)) * csr_array(op.tosparse(), dtype=np.float64)
# Jacobi
diag_inv = arr.diagonal(0) ** -1
lu = arr.copy()
lu.setdiag(0, 0)
iter_matrix_jacobi = diag_inv[:, np.newaxis] * lu # implements D^(-1) (L + U)
plot_eigs(iter_matrix_jacobi, (3, 4), neg_first=True)
plt.savefig("eigs_jacobi.png", dpi=300)
plt.cla()
# Richardson
omega = (DX ** 2) / -4
iter_matrix_richardson = csr_array(eye(arr.shape[0]), dtype=np.float64) - omega * arr
plot_eigs(iter_matrix_richardson, (3, 4), False)
plt.savefig("eigs_richardson.png", dpi=300)
plt.cla()
Given some $\Delta x$ and some grid, it calculates $A$, calculates $C_\text{Jac}$ from $A$ (and $C_\text{Richardson}$, but we’ll get to that) then finds the top twenty eigenvalues with the largest magnitude—plus the corresponding eigenvectors. Then, the spectral radius is just taking the first largest magnitude. It’s not useful for making a general statement about all cases of $A$, but it’s all I need for my specific case. I also went ahead here and reshaped the eigenvectors back into arrays, letting us visualize whatever eigenvector getting hit with so-and-so eigenvalue as the component of a field getting diminished.
In the case of ESP32-fluid-simulation, I was limited by the ESP32’s RAM to a $60 \times 80$ grid, and I happened to let $\Delta x = 1$. Given that, the script got this:
Immediately, we can notice two things:
-
The spectral radius of $C_\text{Jac}$ appears to be not less than one because two of the eigenvalues are $1$ and $-1$.
-
There seems to be positive-negative pairs of eigenvalues, with the eigenvector associated with the positive one looking like the negative counterpart but multiplied by a checkerboard pattern.
From what I’ve gathered, both of these things are to be expected.
Regarding (2), following linked references on Wikipedia led me to a 1950 PhD thesis by David M. Young—an analysis of “successive over-relaxation” in the context of finite difference schemes. Setting aside what “successive over-relaxation” is for now, I worked out that $A$ happens to satisfy what Young calls “property A”. In fact, Young was deriving results from this “property A” with a finite difference problem like this in mind! The thesis is publicly available if you want to see how Young describes it exactly, but in this context, it’s this: given $A$ only has points interact with their neighbors, the grid can be divided into a succession of sets of points where each set only interacts with the preceding and the succeeding set.
Because property A is satisfied, much of the conclusions of that analysis follow. That includes a theorem that states that the eigenvalues of Jacobi iteration (which he called the “Kormes method”, apparently) will come in positive-negative pairs, associated with a pair of eigenvectors where one is just a copy of the other but multiplied by $1$ and $-1$ alternating. That’s exactly what we’re seeing here!
As you might expect, we’ll be interested in Property A and “successive over-relaxation” soon.
Regarding (1), I found a Stack Exchange post that states that an $A$ constructed from a boundary value problem with only i.e. “purely” Neumann boundaries must have infinitely many solutions, separated by a constant, because the entire boundary value problem, which is just the governing equations (which are partial differential equations) and the boundary conditions, then only concerns the derivative of the pressure field. It’s like tacking on “$+\;C$” to the end of an indefinite integral’s result. That means there needs to be a place to choose that constant.
Looking at the eigenvector corresponding to $-1$: it’s very flat. As a flat component that doesn’t diminish over iterations, it looks to me like setting the initial weight of this component is equivalent to choosing the constant part of the solution.
In my case, I always started with a zeroed-out field as the first guess, which zeroes out that component too. But in any case, the neat part is that the choice of constant doesn’t matter because we ultimately subtract the gradient of the pressure from the uncorrected velocity. The gradient consists of partial derivatives, and the constant part doesn’t change its value. The same can be said for its checkerboard counterpart because the discrete gradient, using central differences, always happens to use points with the same color, so to speak. In other words, we’re free to take the next largest eigenvalue as our “spectral radius”—to abuse the term a bit. For our 60 x 80 grid (and a $\Delta x$ of 1), that’s 0.9996. Since “spectral radius” is less than one, we can be sure that Jacobi iteration solves this particular boundary value problem.
One more “but actually” before we move on: I mentioned that my script can also calculate $C_\text{Richardson}$. I noticed in my sources that their codes for computing “Jacobi” iteration element-wise didn’t exactly do $D^{-1} (b - (L+U) x^{(k)})$. When it came time to multiply by $a_{ii}^{-1}$, which can be either $-\frac{\Delta x^2}{4}$, $-\frac{\Delta x^2}{3}$, or $-\frac{\Delta x^2}{2}$ depending on whether the $i$-th point is at the boundary, they just always multiplied by $-\frac{\Delta x^2}{4}$ instead. At the same time, instead of making sure to not take the top neighbor at the top boundary, left neighbor at the left boundary, et cetera, they pulled the ghost row/column value instead. I realized later that this was technically Richardson iteration.
Richardson iteration comes from a different splitting of $A$ into a diagonal matrix of constants and the remainder.
\[A = \alpha I + (A - \alpha I)\]With this sum, we can do the following derivation from $Ax = b$, like we did for Jacobi iteration.
\[\begin{align*} Ax & = b \\ (\alpha I + (A - \alpha I)) x & = b \\ \alpha I x + (A - \alpha I) x & = b \\ \alpha I x & = b - (A - \alpha I) x \\ x & = \alpha^{-1} I (b - (A - \alpha I)x) \\ & = \alpha^{-1} b - \alpha^{-1} (A - \alpha I) x \\ & = \alpha^{-1} b + (I - \alpha^{-1} A) x \\ & \left\downarrow \text{Let }\omega = \alpha^{-1} \right. \\ & = \omega b + (I - \omega A) x\end{align*}\]We can also turn that into the following iteration rule.
\[x^{(k+1)} = \omega b + (I - \omega A) x^{(k)}\]Consider letting $\alpha = \frac{-4}{\Delta x^2}$ (conversely $\omega = \frac{\Delta x^2}{-4}$) so that $\alpha$ is exactly $a_{ii}$ if all four neighbors were there. Then, if $\alpha I$ is subtracted from $A$, a zero remains where $a_{ii}$ once was. Now, notice in the derivation how $(A - \alpha I)$ times $-\alpha^{-1}$ is $I - \omega A$. If there was a zero on the diagonal of $(A - \alpha I)$, there’s still a zero there in $I - \omega A$. This says the pressure at the center isn’t in play, like how it’s not in Jacobi iteration. Overall, it can be shown that Richardson iteration and Jacobi iteration happen to be identical in our problem, except at the boundary.
There, $a_{ii}$ is $\frac{-3}{\Delta x^2}$ or $\frac{-2}{\Delta x^2}$, and $-\frac{1}{4}$ or $-\frac{2}{4}$ is left, not zero, and so the pressure at the center point gets pulled in. When this is compared to how Stam’s “Real-Time Fluid Dynamics for Games” and the GPU Gems article pull a value from the ghost row/column, which in turn pulls from the center, it can be shown that what they’re doing is actually Richardson iteration! (Stam doesn’t do Richardson iteration to the tee, but we’ll get to that.)
When it comes to code, those articles proceed to use the ghost rows and columns as actual rows and columns in memory that are kept up-to-date. That lets them use the fast path on every point because every point does then have all four “neighbors”. This also has the same function run on all points, which is important for GPUs. But for us, that idea is incompatible with the C code I’ve shown so far. At the very least, Richardson iteration could still be achieved by updating the safe path code, and we wouldn’t need to update the fast path code because that part is the same.
static float pois_expr_safe(float *p, int i, int j, int dim_x, int dim_y,
void *ctx)
{
struct pois_context *pois_ctx = (struct pois_context*)ctx;
int i_max = dim_x-1, j_max = dim_y-1;
float p_sum = 0;
p_sum += (i > 0) ? *(p-1) : *p;
p_sum += (i < i_max) ? *(p+1) : *p;
p_sum += (j > 0) ? *(p-dim_x) : *p;
p_sum += (j < j_max) ? *(p+dim_x) : *p;
int ij = INDEX(i, j, dim_x);
return -0.25 * (pois_ctx->dx * pois_ctx->d[ij] - p_sum);
}
To be clear, this function wouldn’t work in my current code. It relies on the ghost rows and columns becoming actual, allocated memory, being constantly updated with the values of the real rows and columns in between iterations.
That’s beside the point that I wanted to make, though. Since they actually used Richardson iteration, I wanted to make sure that the spectral radius of $C_\text{Richardson}$ was also under one, so I added on to the script. To do that, I just needed to know what matrix the error gets multiplied by, and we can use the same equation subtraction as before to find that it’s $(I - \omega A)$.
\[\begin{align*} & & x^{(k+1)} & = \cancel{\omega b} + (I - \omega A) x^{(k)}\\ & -( & x & = \cancel{\omega b} + (I - \omega A) x & ) \\ \hline \\[-1em] & & x^{(k+1)} - x & = (I - \omega A) (x^{(k)} - x) \end{align*}\]Here’s its eigenvalues and eigenvectors for the $60 \times 80$ grid and $\Delta x = 1$:
Though the eigenvectors are somewhat different, the spectral radius is completely within rounding error to that of Jacobi iteration in this case. It makes sense, given that $-\frac{4}{\Delta x^2}$ was the typical value on the diagonal. So, I wouldn’t be so concerned with the distinction, but I know I should at least point it out.
By showing exactly how Jacobi iteration manifests into code via sparse matrices and discussing the spectral radius, we’ve covered all the context that I once used to go beyond. Let’s start with a motivating question: why did I need to go beyond in the first place? The answer lies in the spectral radius we just found. With a spectral radius of $0.9996$, how many iterations would it take to cut the error by even just 90 percent? 5755 iterations! We can never hope to just use Jacobi iteration on an ESP32.
The first step beyond is to use “Gauss-Seidel” iteration instead. We’ll get to how to derive it, but I think it’s better to start with an interesting motivator. Classical “Gauss-Seidel” iteration is eerily similar to Jacobi iteration in implementation, despite how different it is on paper. Instead of element-wise assembling the next pressure array in an output memory, what if we compute it in the same memory as the current pressure array—overwriting one element at a time? Here’s what that would look like.
void poisson_solve(float *p, float *div, int dim_x, int dim_y, float dx,
int iters, float omega)
{
for (int ij = 0; ij < dim_x*dim_y; ij++) {
p[ij] = 0;
}
struct pois_context pois_ctx = {.d = div, .dx = dx};
for (int k = 0; k < iters; k++) {
domain_iter(pois_expr_safe, pois_expr_fast, p, p, dim_x, dim_y,
&pois_ctx);
}
}
Simpler, no? And notice how p is passed in as both the input and the output. It sounds like taking a shortcut at the cost of correctness, but this happens to implement the classical case of “Gauss-Seidel”. By doing this, we happen to use the values of the next pressure array when we pull the bottom and left neighbors, and we can converge faster for doing so. That’s the quintessential part of it. Naturally, Stam’s method of choice in “Real-Time Fluid Dynamics for Games” was Gauss-Seidel, or—to be pedantic—a hybrid of Gauss-Seidel and Richardson iteration. Meanwhile, the GPU Gems article sticks with doing many Jacobi iterations, probably because immediately using elements that were just calculated makes GPU parallelization awkward.
What does matter is this: in Jacobi iteration, we could have looped through the elements in any order with no impact, but in Gauss-Seidel iteration, the order does have an impact. The code we just saw happens to loop through the elements in the conventional left-to-right bottom-to-top order, and doing so pulls from the bottom and left immediately. That’s the “classical” case, but there’s also “red-black Gauss-Seidel iteration”. Its only difference is in the order.
Imagine the grid being colored in a checkerboard red-black pattern, where black points only neighbor red points and red points only neighbor black points. “Red-black” iteration is to just visit all the red points and then visit all the black points after (or all black points then red points). Anyway, the result is this: in the first half, none of the neighbors are of the next pressure array, but in the second half, all of them are.
\[p^{(k+1)}[i, j] = \begin{cases} \displaystyle - \frac{\Delta x}{4} \left( d[i, j] - \frac{p^{(k)}[i+1, j] + p^{(k)}[i-1, j] + p^{(k)}[i, j+1] + p^{(k)}[i, j-1]}{\Delta x^{2}} \right) & \text{red } i, j \\[1em] \displaystyle - \frac{\Delta x}{4} \left( d[i, j] - \frac{p^{(k+1)}[i+1, j] + p^{(k+1)}[i-1, j] + p^{(k+1)}[i, j+1] + p^{(k+1)}[i, j-1]}{\Delta x^{2}} \right) & \text{black } i, j \end{cases}\]For thinking about what the code for such a peculiar looping would be, here are the two key tricks:
- all points one step (horizontal or vertical) away are the other color,
- all points two steps away are the same color, and
- if we assume that point $0,\;0$ is black, then every point where $i+j$ is even must be black.
And now, here’s what the code for that would look like.
static inline int point_is_red(int i, int j) {
return (i + j) & 0x1;
}
static void domain_iter_red_black(
float (*expr_safe)(float*, int, int, int, int, void*),
float (*expr_fast)(float*, int, int, int, int, void*), U *wrt, T *rd,
int dim_x, int dim_y, void *ctx)
{
int i_max = (dim_x)-1, j_max = (dim_y)-1; // inclusive!
int ij, offset;
int bottom_left_is_red = point_is_red(0, 0),
bottom_right_is_red = point_is_red(i_max, 0),
top_left_is_red = point_is_red(0, j_max);
int on_red = 0;
repeat_on_red: // on arrival to this label, on_red = 1
// Loop over the main body (starting from 1,1 as black or 2,1 as red)
for (int j = 1, offset = on_red; j < j_max; ++j, offset ^= 1) {
for (int i = 1+offset; i < i_max; i += 2) {
ij = index(i, j, dim_x);
wrt[ij] = expr_fast(&rd[ij], i, j, dim_x, dim_y, ctx);
}
}
// Loop over the bottom (including left and right corners)
offset = (on_red == bottom_left_is_red) ? 0 : 1;
for(int i = offset; i <= i_max; i += 2) {
ij = index(i, 0, dim_x);
wrt[ij] = expr_safe(&rd[ij], i, 0, dim_x, dim_y, ctx);
}
// Loop over the top (including left and right corners)
offset = (on_red == top_left_is_red)? 0 : 1;
for(int i = offset; i <= i_max; i += 2) {
ij = index(i, j_max, dim_x);
wrt[ij] = expr_safe(&rd[ij], i, j_max, dim_x, dim_y, ctx);
}
// Loop over the left (starting from 0,1 or 0,2)
offset = (on_red == !bottom_left_is_red) ? 1 : 2; // we're *adjacent* it
for(int j = offset; j < j_max; j += 2) {
ij = index(0, j, dim_x);
wrt[ij] = expr_safe(&rd[ij], 0, j, dim_x, dim_y, ctx);
}
// Loop over the right (starting from i_max,1 or i_max,2)
offset = (on_red == !bottom_right_is_red)? 1 : 2;
for(int j = offset; j < j_max; j += 2) {
ij = index(i_max, j, dim_x);
wrt[ij] = expr_safe(&rd[ij], i_max, j, dim_x, dim_y, ctx);
}
if (!on_red) {
on_red = 1;
goto repeat_on_red;
}
}
The change in going with this over classical Gauss-Seidel isn’t critical. I just did it because it made the sim look better. Though, to be frank, I’m not sure why. In fact, by starting from what’s presented in Young’s analysis, it can be shown that both methods have the same spectral radius. I’ll get to that at some point.
I think Gauss-Seidel iteration is better thought of as an improvement that emerges from taking that shortcut in the element-wise computation, but if you’re curious, here’s how it emerges when starting from the linear algebra. Recall the $A = D + L + U$ splitting, and let $S$ be the diagonal plus the lower-triangular parts, $D + L$.
\[\begin{align*} A & = D + L + U \\ & \left\downarrow \text{ Let } S = D + L \right. \\ & = S + U \end{align*}\] \[\begin{bmatrix} a_{11} & a_{12} & \cdots & a_{1n} \\ a_{21} & a_{22} & \cdots & a_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ a_{n1} & a_{n2} & \cdots & a_{nn} \end{bmatrix} = \begin{bmatrix} a_{11} & 0 & 0 & \cdots & 0 \\ a_{21} & a_{22} & 0 & \cdots & 0 \\ a_{31} & a_{32} & a_{33} & \ddots & \vdots \\ \vdots & \vdots & \vdots & \ddots & 0 \\ a_{n1} & a_{n2} & a_{n3} & \vphantom{\vdots} \cdots & a_{nn} \end{bmatrix} + \begin{bmatrix} 0 & a_{12} & a_{13} & \cdots & a_{1n} \\ & 0 & a_{23} & \cdots & a_{2n} \\ & & 0 & \ddots & \vdots \\ & & & \ddots & a_{(n-1)n} \\ & & & & 0 \end{bmatrix}\]Like in Jacobi iteration and Richardson iteration, we derive something from $Ax = b$, as follows.
\[\begin{align*} Ax & = b \\ (S+U) x & = b \\ Sx + Ux & = b \\ x & = S^{-1} (b - Ux)\end{align*}\]And then, we define an iteration rule based on that.
\[x^{(k+1)} = S^{-1} (b - U x^{(k)})\]That said, we now have to do something slightly different when we’re going element by element. Calculating $b - U x^{(k)}$ is like calculating $b - (L + U) x^{(k)}$ from Jacobi iteration, just without the left and bottom neighbors, which were associated with $L$. But how on earth do we compute the multiplication of $b - U x^{(k)}$ with $S^{-1}$ when it isn’t diagonal anymore? We exploit the fact that $S$ is sparse and lower-triangular. Yes, even though $S$ includes the diagonal cut-out $D$, it is still lower-triangular. When it comes to definitions, “lower-triangular” can include a non-zero diagonal, whereas a “strictly lower-triangular” one cannot.
There are two questions at hand here. First, I stated that just modifying the Jacobi iteration procedure to overwrite old elements in the given array gives Gauss-Seidel iteration. This implies that Gauss-Seidel iteration also computes the elements of $x^{(k+1)}$ one by one. What kind of linear algebra construct also lends to such an implementation? Second, we don’t get to know what $S^{-1}$ is for free anymore because it’s not diagonal. What should we do about it?
The answer? $S$ being lower-triangular lets us kill two birds with one stone by using “forward substitution”.
Forward substitution is analogous to the latter half of Gaussian elimination, specifically the back-substitution phase that follows finding the row-echelon form. First, recognize that calculating the product of $S^{-1}$ and $(b - U x^{(k)})$ is equivalent to solving the equation $Sz = (b - U x^{(k)})$ for $z$. Solving this equation sidesteps needing to know $S^{-1}$. Forward substitution also happens to yield the elements of $z$ one by one. To show it, let’s first recast the problem into another $Ax = b$, where $A$ is $S$, $b$ is $(b - U x^{(k)})$, and $x$ is $z$.
Then, while recognizing that $S$ is lower-triangular, we should write out each individual equation.
\[\begin{align*} & a_{11} x_1 & & = b_1 \\ & a_{21} x_1 + a_{22} x_2 & & = b_2 \\ & & & \enspace \vdots \\ & a_{n1} x_1 + a_{n2} x_2 + \dots + a_{nn} x_n & & = b_n \end{align*}\]The first equation has an obvious solution, $x_1 = \frac{b_1}{a_{11}}$. Then, we can substitute the value of $x_1$ into all the following equations. That makes the second equation solvable, yielding $x_2 = \frac{1}{a_{22}} (b_2 - a_{21} x_1)$. Substituting this result downward makes the third equation solvable, and so on.
After looking at how forward substitution yields the elements of $x$, consider now how it pulls elements of $b$. The first equation uses $b_1$, the second uses $b_2$, and so on. So, if $b$ was in fact the value of some expression, can we not interleave the computation of elements of $x$ and of $b$? We can calculate $b_1$ then $x_1$, $b_2$ then $x_2$, and so on. Now, remember that “$b$” here is $b - U x^{(k)}$ and “$x$” here is $z$ i.e. $S^{-1} (b - U x^{(k)})$. Computing some element of “$b_i$” involves the right and top neighbors of point $i$ because $U$ is upper-triangular, and computing “$x_i$” involves the forward-substituted elements of $x$ from the bottom and left neighbors (since $S$ is lower-triangular).
Now, what if I told you that forward-substitution could be implemented without any real, tangible substituting all the way down? It’s always interesting when something is invoked in the definition of a procedure but not explicitly realized!
First, let’s state the obvious: once $x^{(k+1)}$ is computed, $x^{(k)}$ is discarded. Now, we should chart the course that some given element $x^{(k)}_i$ takes to its ultimate fate. Unlike in Jacobi iteration, there is no $D x^{(k)}$ term, i.e. no $x^{(k)}$ term for the bottom and left neighbors. Instead, $x^{(k+1)}$ terms for those neighbors show up as part of the forward-substitution. Anyway, there is only a $U x^{(k)}$ term, and the result is this: once some point $i$ is no longer the top-neighbor or right-neighbor of any other point $j$ that hasn’t had its $x^{(k+1)}_j$ calculated yet, $x^{(k)}_i$ will never be used again. In other words, point $i$ is ready to be discarded after its left-neighbor and its bottom-neighbor are reached. Well, given the left-to-right, bottom-to-top order, reaching point $i$ implies that those neighbors were already reached. From a memory-saving perspective, can we not have it so that $x^{(k+1)}_i$ is where $x^{(k)}_i$ used to be?
Second, one might imagine forward substitution as literally constructing a series of equations with all the coefficients physically arranged like a triangle, but all the essentials of it is just to find one element of the solution at a time–yielding $x^{(k+1)}_i$ for $i$ from $1$ to $N$–by using the previously-found elements to find the next. In an actual procedure, those elements can be stored in whatever way. In our case, each step $i$ produces $x^{(k+1)}_{i}$ at a time when $x^{(k)}_i$ no longer necessary. To overwrite with each step is to progressively finish consuming elements of the input and put elements of the solution in its place. To top it all off, doing so makes the relevant previously-found elements very easy to find–just a step left or step down away.
Here we have a procedure that loops through the points, overwriting as it goes and pulling the just-overwritten left and bottom neighbors. Et voilà, we’ve arrived at the same Gauss-Seidel procedure as before!
Finally, the difference between this and red-black Gauss-Seidel is this: by looping through the red points then through the black points, we’ve permuted the elements of $x$ (from the original $Ax = b$) into a new order that follows this looping, an order distinct from the conventional left-to-right bottom-to-top order, mapping from 2D position to 1D index. That’s best demonstrated with our good old three-by-three example.
Feel free to notice here how all the red points and black points are consecutive now!
Formally, this can be written as a matrix similarity between $A$ and what we’ll call $A_\text{red-black}$, with a permutation matrix $P$ as the change-of-basis.
\[P^{-1} A_\text{red-black} P = A\]Then, $Ax = b$ can be written as $P^{-1} A_\text{red-black} P x = b$. This expresses how the elements of $x$ are permuted, put through $A_\text{red-black}$, then permuted back into conventional order. In practice, the red-black code doesn’t actually shuffle the memory. Rather, the changed looping does the work, like how the Gauss-Seidel code doesn’t actually do any substitutions to implement forward substitution.
That said, though this matrix is definitionally similar, its $D + L + U$ splitting takes on a starkly different meaning. No longer does $L$ mean the left and bottom neighbors and $U$ mean the top and right neighbors. What does still stand is the fact that $L$ stands for the preceding and $U$ stands for the succeeding. Consider how $x$ is all-red and then all-black. Constructing a Gauss-Seidel procedure with this order gives the all-red-then-all-black looping. And in this procedure, $L$ comes to mean the red points and $U$ comes to mean the black points.
Last but not least, the next step beyond Gauss-Seidel iteration is “successive over-relaxation”, or “SOR”. The intuition of it goes like this: if stepping from $p^{(k)}[i, j]$ to $p^{(k+1)}[i, j]$ is in the right direction, what if we went further in that direction? It’s a linear extrapolation from $p^{(k)}[i, j]$ to $p^{(k+1)}[i, j]$ and onward. That is,
\[p_\text{SOR}^{(k+1)}[i, j] = \omega p_\text{G-S}^{(k+1)}[i, j] + (1-\omega) p^{(k)}[i, j]\]where $p_\text{G-S}^{(k+1)}[i, j]$ is the result from Gauss-Seidel iteration and $\omega$ is ordinarily a parameter between $0$ and $1$ that slides us between $p_\text{G-S}^{(k+1)}[i, j]$ and $p^{(k)}[i, j]$. It quite literally is the same expression as linear interpolation (yes, that lerp). But here, we’re free to push $\omega$ beyond $1$. Doing so can get us closer to the solution faster—much faster. Let’s look at its spectral radius.
So far, we have had nothing concrete to say about the spectral radius of Gauss-Seidel iteration—not what we can expect it to be, much less whether it is better than Jacobi iteration. The same can be said for SOR. To preface a bit first, you may have already realized that Gauss-Seidel can also be thought of as the $\omega = 1$ case of SOR. This means that an analysis of SOR will also cover Gauss-Seidel. That out of the way, Young found that, for matrices satisfying Property A, the spectral radius of SOR is a function of $\omega$ and the spectral radius of Jacobi iteration! Denoting $\rho(C_\text{Jac})$ as $\mu$ here, it goes like this:
\[\rho(C_\omega) = \begin{cases} \frac{1}{4} \left( \omega \mu + \sqrt{\omega^2\mu^2 - 4(\omega-1)} \right)^2 & 0 \leq \omega \leq \omega_\text{opt} \\ \omega - 1 & \omega_\text{opt} \leq \omega \leq 2 \end{cases}\]where $\omega_\text{opt}$ is given by the following expression
\[1 + \left( \frac{\mu}{1+\sqrt{1-\mu^2}} \right)^2\]and happens to be the value of $\omega$ that minimizes $\rho(C_\omega)$. The following plot make things clearer.
With this, we can check out what the radius of Gauss-Seidel iteration is. Plugging $1$ into the formula, we get that
\[\begin{align*}\rho(C_1) & = \frac{1}{4} \left( \mu + \sqrt{\mu^2} \right)^2 \\ & = \frac{1}{4} (2\mu)^2 \\ & = \mu^2 \end{align*}\]meaning that one Gauss-Seidel step is worth two Jacobi steps.
Now, let’s see how many Jacobi steps one SOR step is worth. Given our $60 \times 80$ grid and $\Delta x = 1$, we found earlier that our spectral radius was $0.9996$. Letting $\mu = 0.9996$, we get that $\omega_\text{opt} = 1.96$. Passing this into the formula for $\rho(C_\omega)$, we get that $\rho(C_{1.96}) = 0.96$. The number of steps is the exponent that takes $0.9996$ to $0.96$, or in other words $\log_{0.9996}(0.96) = 102.034$. One step of SOR is worth over a hundred Jacobi steps. Granted, at this point, I’d bet that we here have pushed the ideas of SOR to their breaking point. Here, I suspect that the “conjugate gradient” method makes more sense. In fact, in that response I got from Stam, he mentioned that it was what he used to find the pressure, along with using a MAC grid. Though the grids aren’t the same, it sounds like it could work, but that must be a side project for another day. This has been a long post, and this has been a long series.
This series has had more than a few tangents, and this one will be the last. I had seen the red-black order’s output looked much better than going in conventional order, so why did I assert that their spectral radii are the same?
First, actually, the order matters in Young’s derivation of SOR’s spectral radius. It only holds if the order is what he called a “consistent order”. After going through what makes a “consistent order”, he went on to show four cases. Red-black is in indeed one of them, but the conventional order is also one. To list them all, there is
- $\sigma_1$, a left-to-right, top-to-bottom order (equivalent to left-to-right, bottom-to-top),
- $\sigma_2$, a wavefront order,
- $\sigma_3$, the red-black order, and
- $\sigma_4$, a zigzag order.
You can see those orderings below. Points are in the order given by their numbers, though points with the same number can be evaluated in any order.
Because order doesn’t matter in Jacobi iteration, all orderings lead to the same $\rho(C_\text{Jacobi})$. Now, for a consistent order, $\rho(C_\omega)$ is a function of $\rho(C_\text{Jacobi})$. If the latter is the same, then so should be the former.
Yet they look different when I actually run the two. Perhaps they have different eigenvectors? I don’t know why that is, really, but I went ahead and picked red-black SOR because there was no arguing against the fact that it looked better.
Here’s the culminating piece, a red-black SOR code, the thing that made ESP32-fluid-simulation possible.
struct pois_context {
float *d;
float dx;
float omega;
};
static float pois_sor_safe(float *p, int i, int j, int dim_x, int dim_y,
void *ctx)
{
struct pois_context *pois_ctx = (struct pois_context*)ctx;
float omega = pois_ctx->omega;
float p_gs = pois_expr_safe(p, i, j, dim_x, dim_y, ctx);
return (1-omega)*(*p) + omega*p_gs;
}
static float pois_sor_fast(float *p, int i, int j, int dim_x, int dim_y,
void *ctx)
{
struct pois_context *pois_ctx = (struct pois_context*)ctx;
float omega = pois_ctx->omega;
float p_sum = (*(p-1) + *(p+1)) + (*(p-dim_x) + *(p+dim_x));
int ij = index(i, j, dim_x);
float p_gs = -0.25f * (pois_ctx->dx * pois_ctx->d[ij] - p_sum);
return (1-omega)*(*p) + omega*p_gs;
}
void poisson_solve(float *p, float *div, int dim_x, int dim_y, float dx,
int iters, float omega)
{
for (int ij = 0; ij < dim_x*dim_y; ij++) {
p[ij] = 0;
}
struct pois_context pois_ctx = {.d = div, .dx = dx, .omega = omega};
for (int k = 0; k < iters; k++) {
domain_iter_red_black(pois_sor_safe, pois_sor_fast, p, p, dim_x, dim_y,
&pois_ctx);
}
}
In summary, to compute a divergence-free velocity field, we applied the Helmholtz-Hodge decomposition, but the decomposition itself gave us a boundary value problem to solve. Through discretization, we turned that problem into a massive $Ax = b$ problem, but one where $A$ was sparse. We used that sparsity to our advantage, choosing to approximately solve it with an iterative method that lets us compute the next guess at $x$ one element at a time—skipping the zeroes along the way. The first one we saw was Jacobi iteration. I shared how I got its spectral radius. Then, we saw Gauss-Seidel iteration and SOR. Finally, we learned that, for the class of matrices satisfying Property A, including our $A$, Gauss-Seidel was faster and SOR was dramatically faster. All this context was necessary to figuring out how to run a fluid sim on an ESP32.
With that, the actual fluid sim mechanism in ESP32-fluid-simulation is entirely covered, and that caps off the tour through its use of FreeRTOS, the Cheap Yellow Display (CYD), and the Navier-Stokes equations. This was quite the epic undertaking for me, building the sim more than one year ago then going to write on and off about it since. I’d do it again, considering that—in trying to explain it—I ended up formalizing my own understanding of my own project and updated it accordingly along the way. And now that understanding is here on the internet.
That said, this project is far from the last one I’ll ever make then write about. Look out for the next series, to be announced some day. In any case and for the last time, you can see ESP32-fluid-simulation on GitHub!
